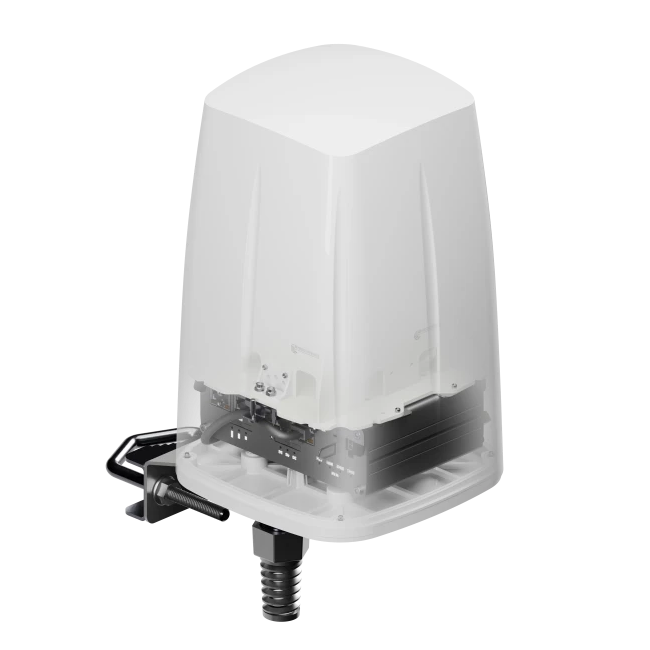

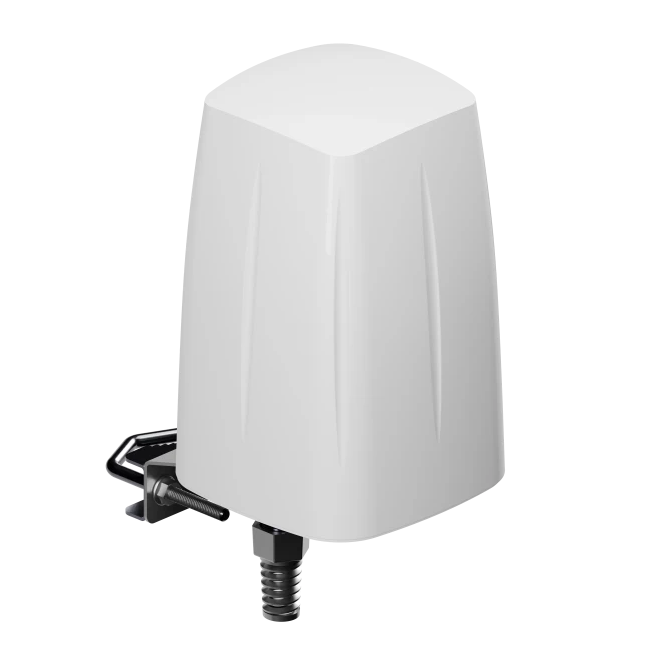

Teltonika Outdoor LTE & 5G/Wi-Fi/GPS Antenna for RUTX50 and RUTM50 Routers

  • 2 695,-
Leverandørlager (sendes normalt etter ca. 1 uke).
Artikkelnummer: tn-pr1ica70
EAN: 4779051841639
Se mer informasjon
Del

Datasheet | Quick Installation Guide


TECHNICAL DATA


5G ANTENNA
Frequency Range617 ~ 960, 1700 ~ 2700, 3300 ~ 4300 MHz
PolarisationVertical
Radiation pattern typeOmnidirectional
GainMax 4.5 dBi
V.S.W.R< 2.50
Impedance50 Ω
Connector type and count4x SMA male

GNSS ANTENNA
Frequency Range1560 ~ 1610 MHz
PolarisationRHCP
Gain28 dBi
V.S.W.R< 2.00
Impedance50 Ω
Connector type and count1x SMA male
Current consumption2.5 - 6.5 mA
Supply voltage2.5 - 6.5 VDC

WI-FI ANTENNA
Frequency Range2400 ~ 2500, 4700 ~ 6000 MHz
PolarisationVertical
Radiation pattern typeOmnidirectional
GainMax 7.5 dBi
V.S.W.R< 2.00
Impedance50 Ω
Connector type and count2x RP-SMA male

MECHANICAL/ENVIRONMENTAL
Cable6x RG316, 1x RG174
Operating Temperature-40 °C to 75 °C
Mounting MethodWall, ceiling, mast
IP ratingIP67
Weight1500 g
RoHS compliant✓
