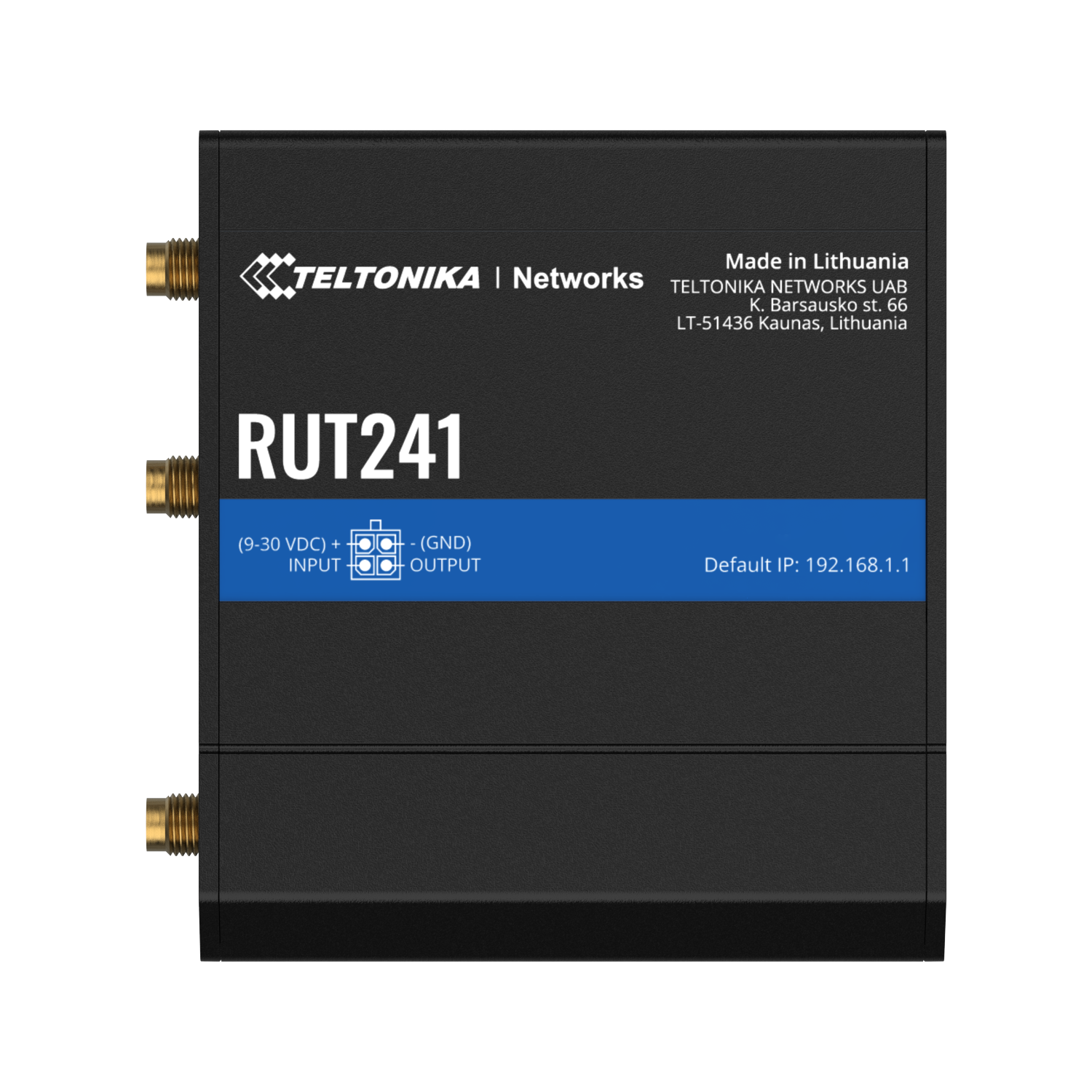

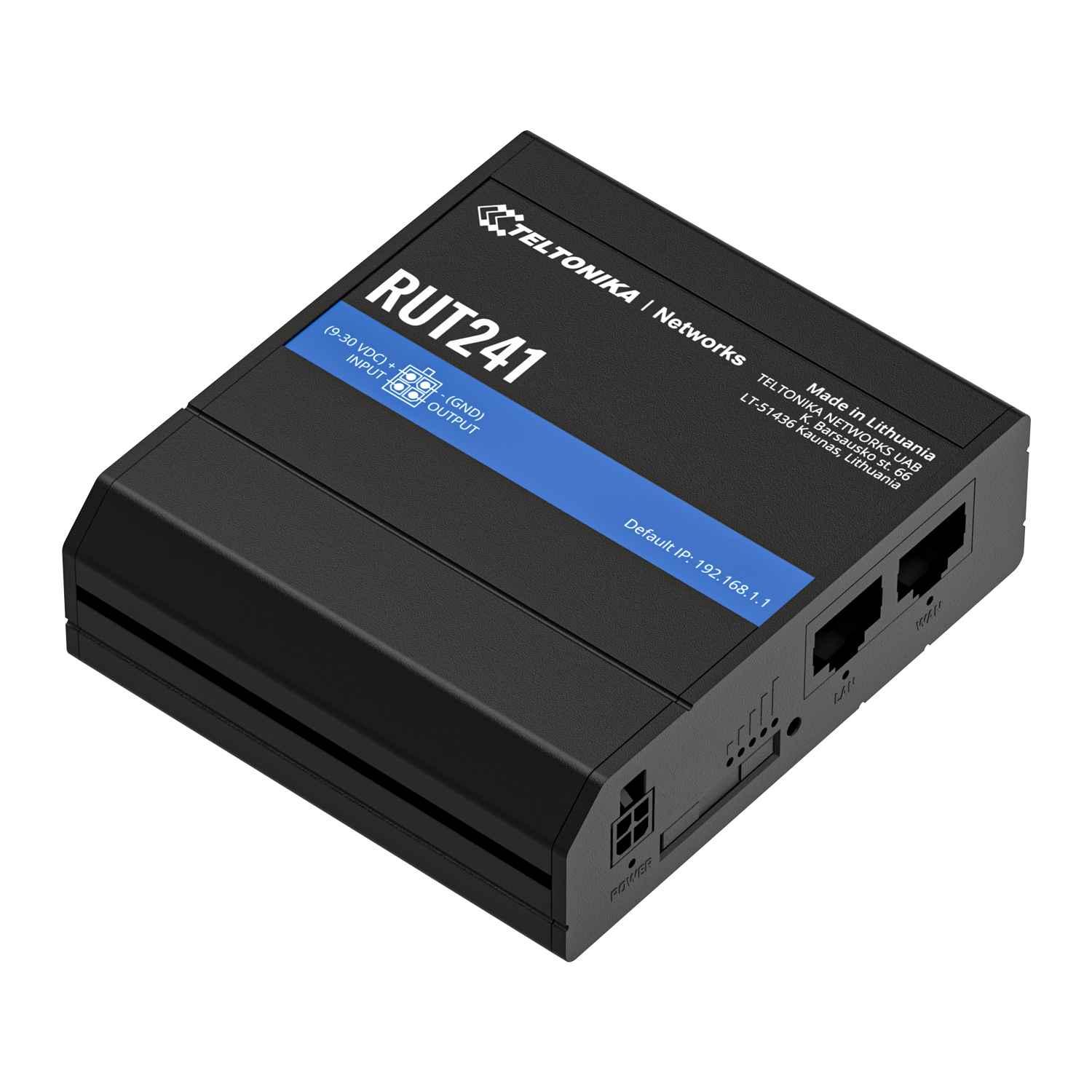

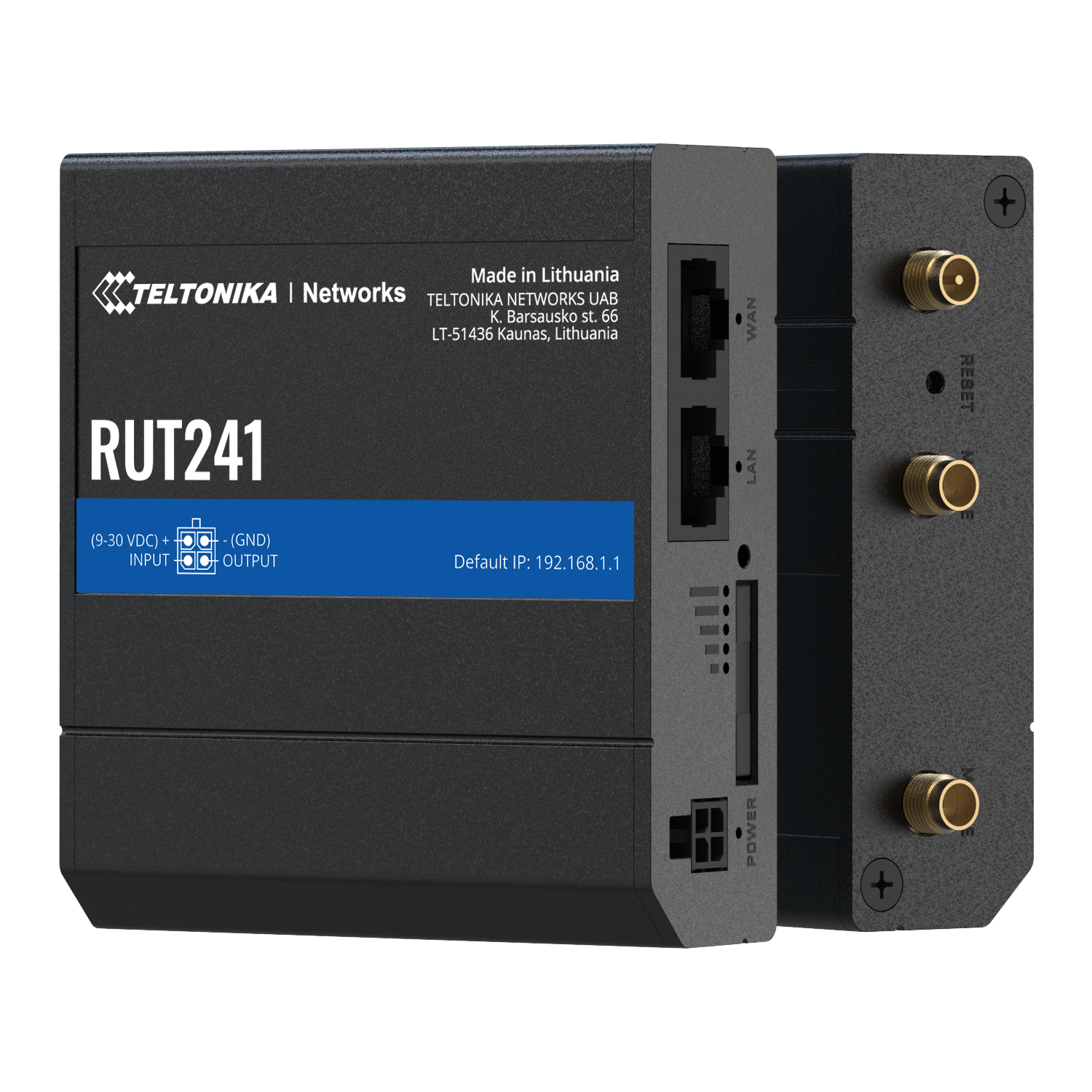

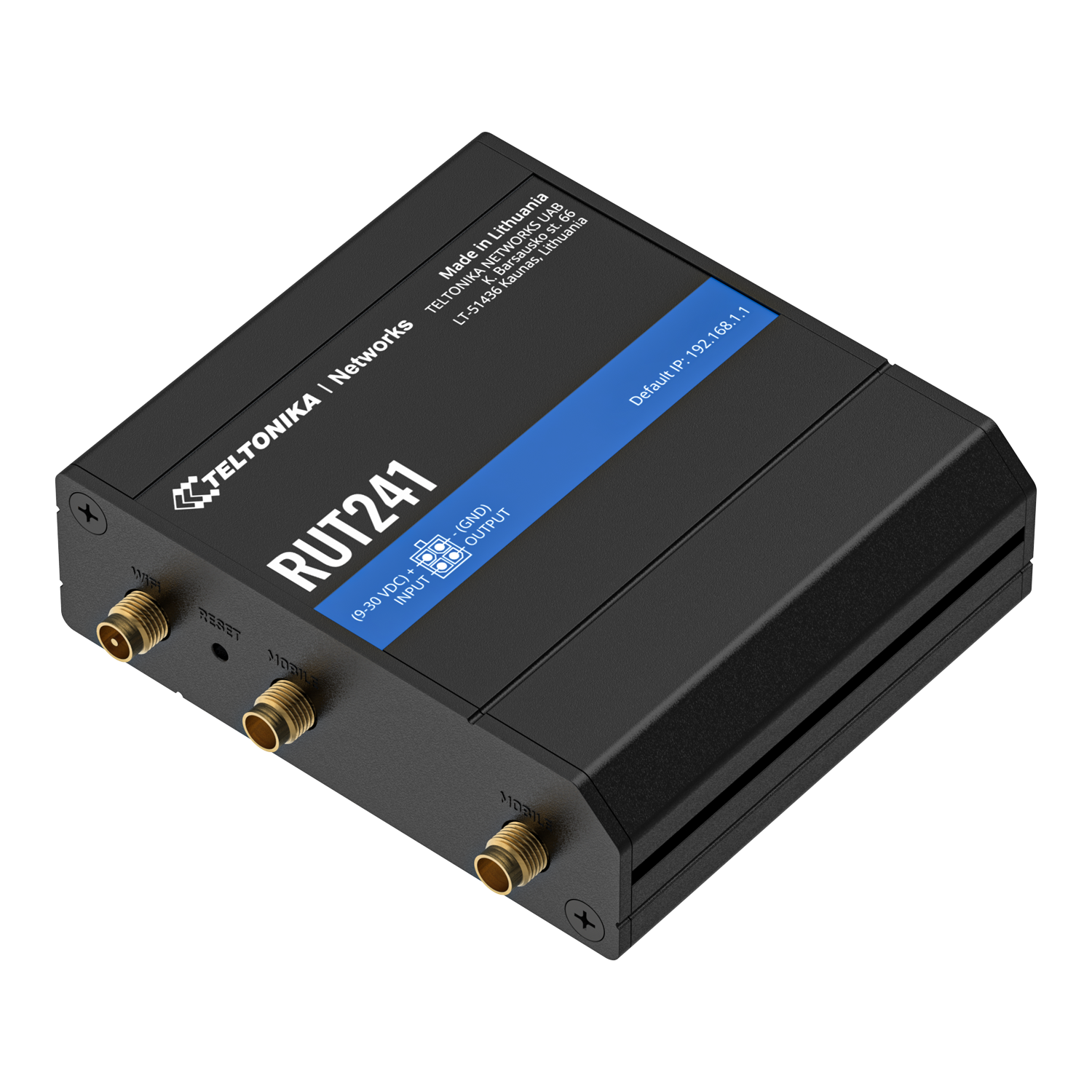

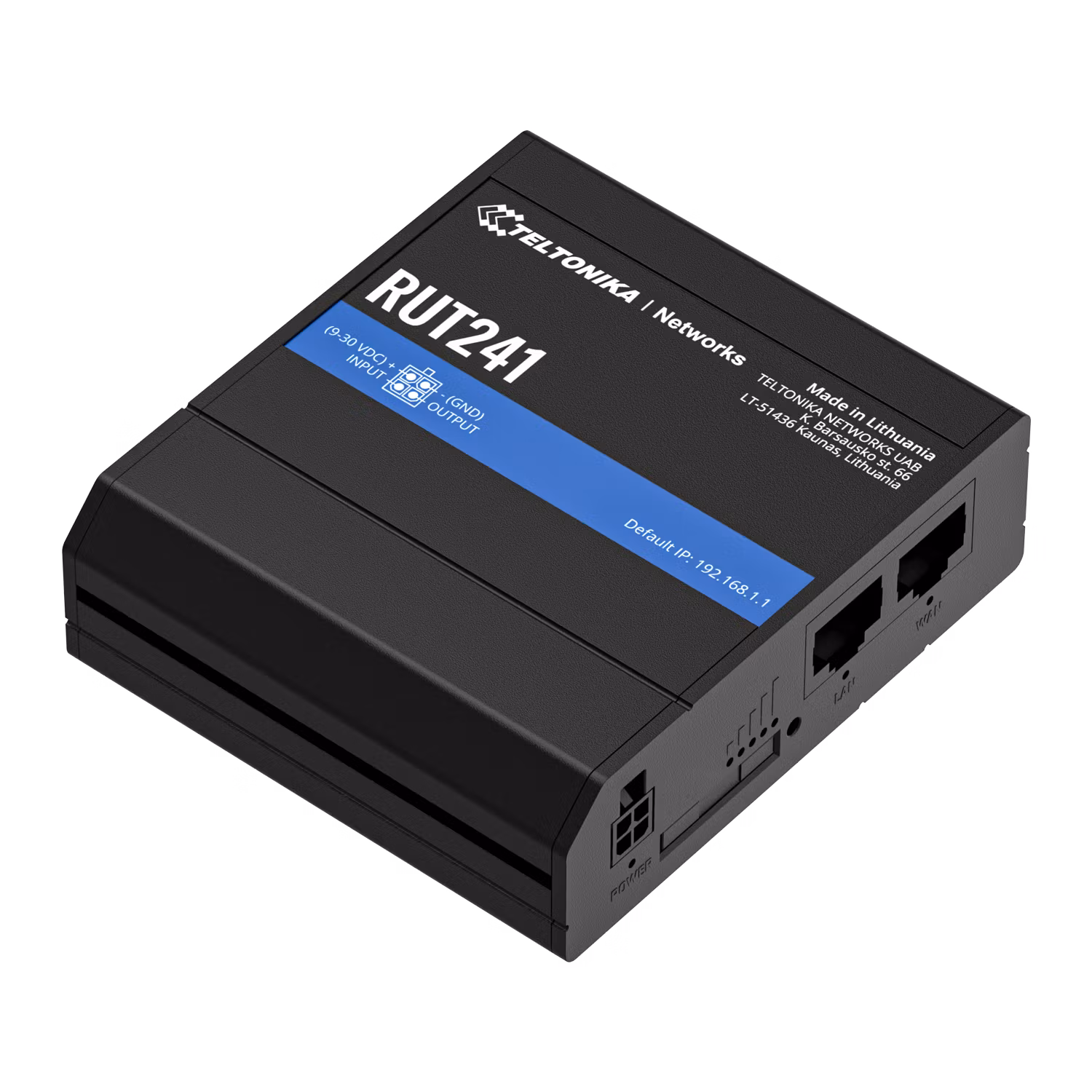

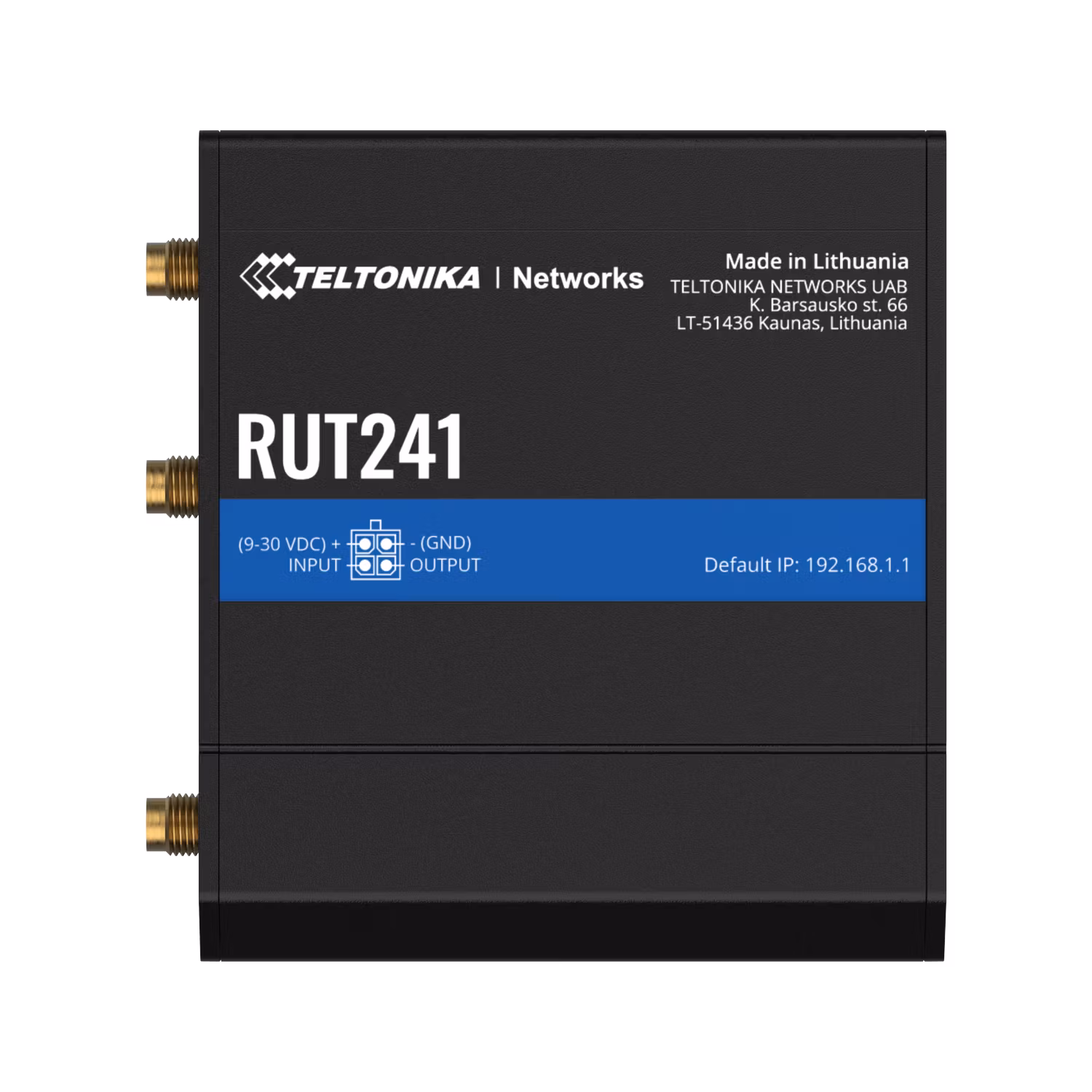

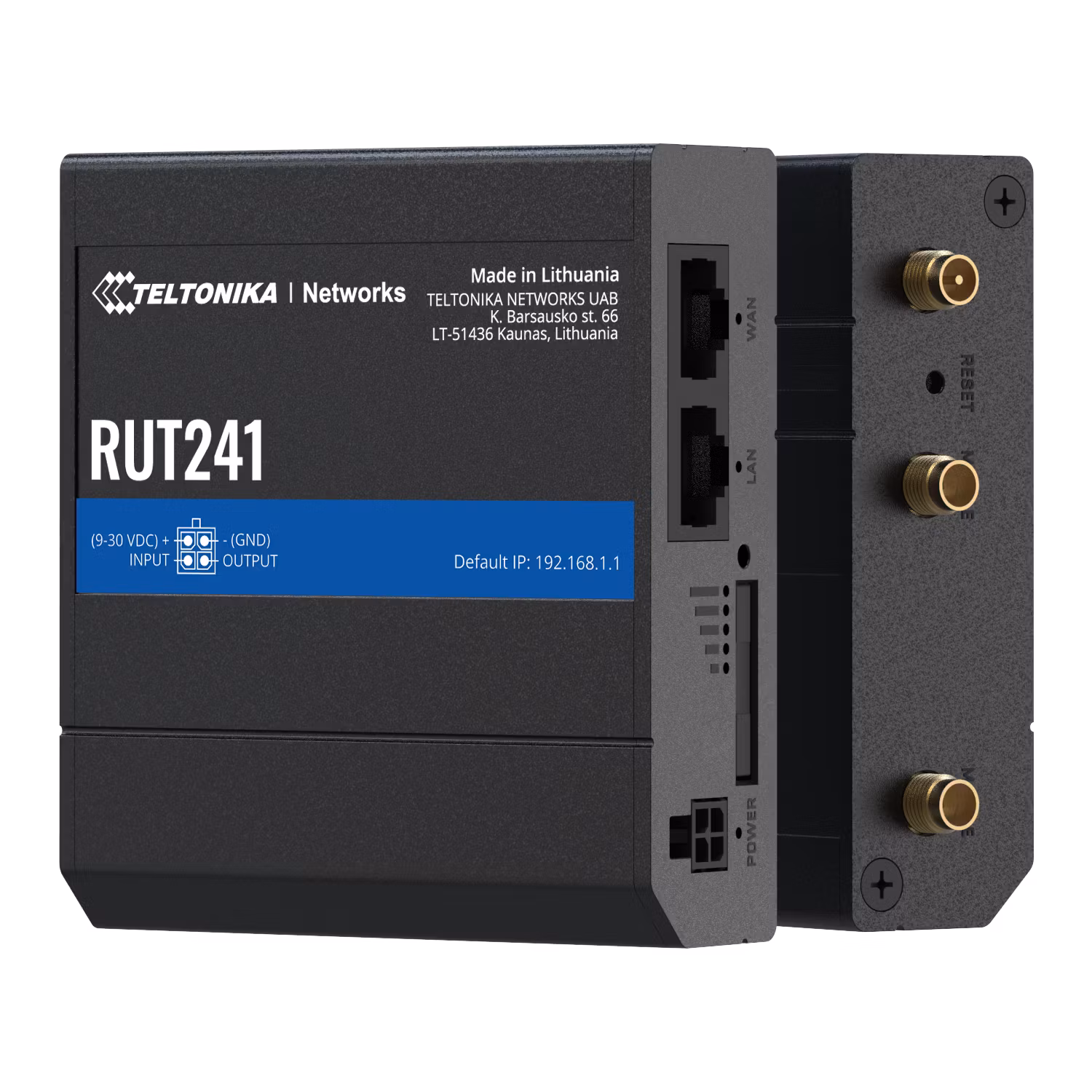

Teltonika RUT241 Industriell 4G (LTE) router

  • 1 925,-
Lagerbalanse: 40 stk.
Artikkelnummer: tn-rut241
EAN: 4779051840151
Del

Equipped with 4G LTE, Wi-Fi, and two Ethernet ports, RUT241 offers unstoppable connection continuity with automatic WAN failover. Industrial design, compact size, multiple connection interfaces, and compatibility with RMS make this device an excellent fit in numerous IoT and M2M solutions.

Flyer | Datasheet


PACKAGE CONTAINS

  • Router RUT241
  • 9 W PSU
  • 2x LTE antennas (swivel, SMA male)
  • 1x Wi-Fi antenna (swivel, RP-SMA male)
  • Ethernet cable (1.5 m)
  • SIM Adapter kit
  • QSG (Quick Start Guide)
  • Packaging box

FEATURES

MOBILE
Mobile module4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
3GPP ReleaseRelease 10/11 depending on the hardware version
StatusSignal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID
SMSSMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSDSupports sending and reading Unstructured Supplementary Service Data messages
Black/White listOperator black/white list
Multiple PDNPossibility to use different PDNs for multiple network access and services
Band managementBand lock, Used band status display
APNAuto APN
BridgeDirect connection (bridge) between mobile ISP and device on LAN
PassthroughRouter assigns its mobile WAN IP address to another device on LAN

WIRELESS
Wireless modeIEEE 802.11b/g/n, Access Point (AP), Station (STA)
Wi-Fi securityWPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation
SSID/ESSIDSSID stealth mode and access control based on MAC address
Wi-Fi usersUp to 50 simultaneous connections
Wireless Connectivity FeaturesFast roaming (802.11r), Relayd
Wireless MAC filterWhitelist, blacklist

NETWORK
HotspotCaptive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes and option to upload and download customised hotspot themes
RoutingStatic routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network protocolsTCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)
VoIP passthrough supportH.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoringPing Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
FirewallPort forward, traffic rules, custom rules
DHCPStatic and dynamic IP allocation, DHCP Relay
QoS / Smart Queue Management (SQM)Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNSSupported >25 service providers, others can be configured manually
Network backupWi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
Load balancingBalance Internet traffic over multiple WAN connections
SSHFSPossibility to mount remote file system via SSH protocol

ETHERNET
WAN1 x WAN port  10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
LAN1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

SECURITY
AuthenticationPre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block
FirewallPre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Attack preventionDDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLANPort and tag-based VLAN separation
Mobile quota controlMobile data limit, customizable period, start time, warning limit, phone number
WEB filterBlacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
Access controlFlexible access control of TCP, UDP, ICMP packets, MAC address filter

VPN
OpenVPNMultiple clients and a server can run simultaneously, 27 encryption methods
OpenVPN EncryptionDES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
IPsecIKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
GREGRE tunnel, GRE tunnel over IPsec support
PPTP, L2TPClient/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
StunnelProxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPNMethod of building scalable IPsec VPNs
SSTPSSTP client instance support
ZeroTierZeroTier VPN client support
WireGuardWireGuard VPN client and server support
TincTinc offers encryption, authentication and compression in it's tunnels. Client and server support.

MODBUS TCP SLAVE
ID rangeRespond to one ID in range [1;255] or any
Allow Remote AccessAllow access through WAN
Custom registersMODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality

MODBUS TCP MASTER
Supported functions01, 02, 03, 04, 05, 06, 15, 16
Supported data formats8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)

DATA TO SERVER
ProtocolHTTP(S), MQTT, Azure MQTT, Kinesis

MQTT GATEWAY
MQTT GatewayAllows sending commands and receiving data from MODBUS Master through MQTT broker

DNP3
Supported modesTCP Master, DNP3 Outstation

MONITORING & MANAGEMENT
WEB UIHTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
FOTAFirmware update from server, automatic notification
SSHSSH (v1, v2)
SMSSMS status, SMS configuration, send/read SMS via HTTP POST/GET
CallReboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
TR-069OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTTMQTT Broker, MQTT publisher
SNMPSNMP (v1, v2, v3), SNMP Trap
JSON-RPCManagement API over HTTP/HTTPS
MODBUSMODBUS TCP status/control
RMSTeltonika Remote Management System (RMS)

IOT PLATFORMS
Cloud of ThingsAllows monitoring of: Device data, Mobile data, Network info, Availability
ThingWorxAllows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
CumulocityAllows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength
Azure IoT HubCan send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type

SYSTEM CHARACTERISTICS
CPUMediatek, 580 MHz, MIPS 24KEc
RAM128 MB, DDR2
FLASH storage16 MB, SPI Flash

FIRMWARE / CONFIGURATION
WEB UIUpdate FW from file, check FW on server, configuration profiles, configuration backup
FOTAUpdate FW
RMSUpdate FW/configuration for multiple devices at once
Keep settingsUpdate FW without losing current configuration

FIRMWARE CUSTOMISATION
Operating systemRutOS (OpenWrt based Linux OS)
Supported languagesBusybox shell, Lua, C, C++
Development toolsSDK package with build environment provided

INPUT / OUTPUT
Input1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
Output1 x Digital Output, Open collector output, max output 30 V, 300 mA
EventsEmail, RMS, SMS
I/O jugglerAllows to set certain I/O conditions to initiate event

POWER
Connector4-pin industrial DC power socket
Input voltage range9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max
PoE (passive)Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
Power consumption< 6.5 W Max

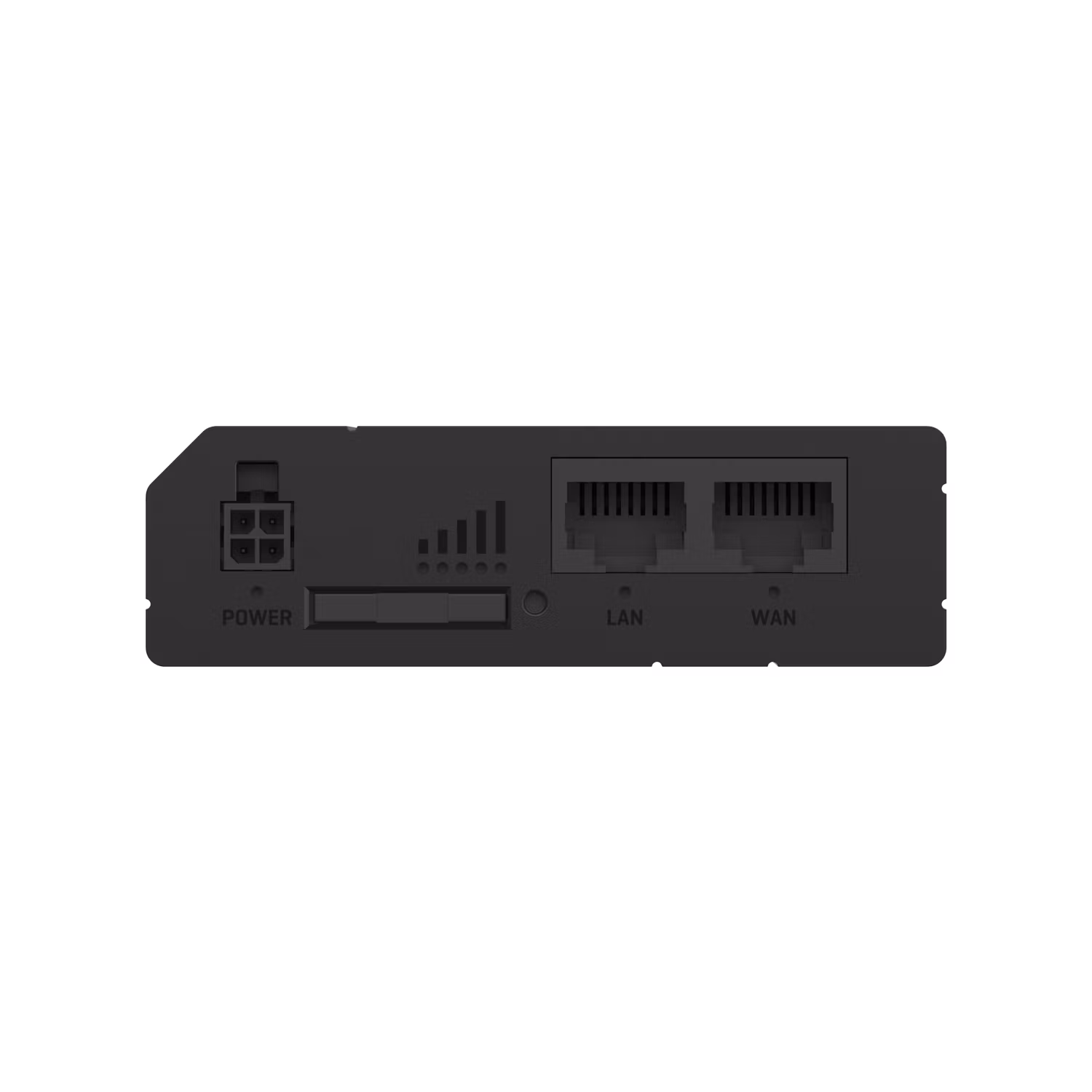

PHYSICAL INTERFACES
Ethernet2 x RJ45 ports, 10/100 Mbps
I/O’s1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs3 x Connection type status LEDs, 5 x Connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED
SIM1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V, external SIM holder
Power1 x 4-pin power connector

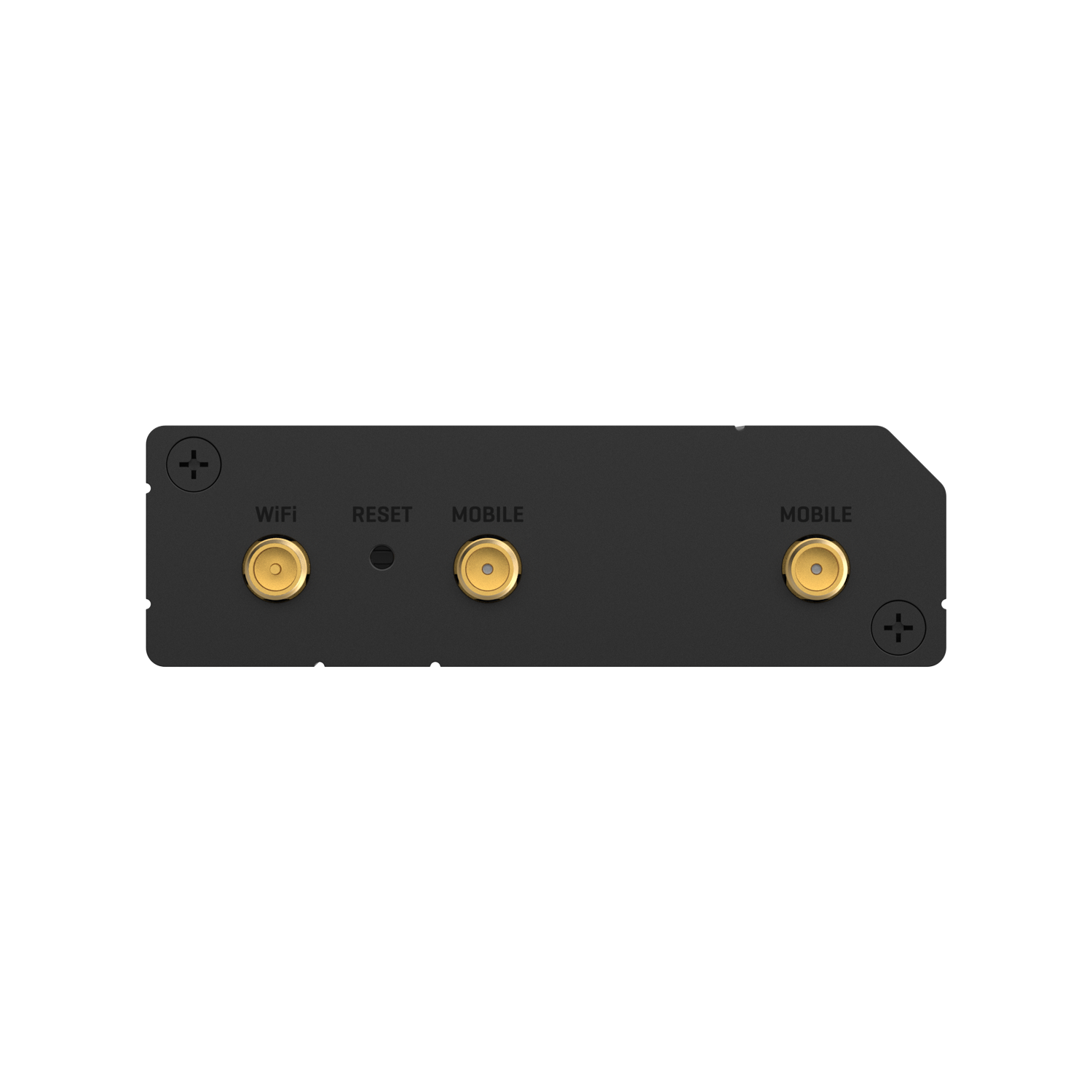

Antennas

2 x SMA for LTE, 1 x RP-SMA for Wi-Fi antenna connectors
ResetReboot/User default reset/Factory reset button

PHYSICAL SPECIFICATION
Casing materialAluminium housing, plastic panels
Dimensions (W x H x D)83 x 25 x 74 mm
Weight125 g
Mounting optionsBottom and sideways DIN rail mounting slots

OPERATING ENVIRONMENT
Operating temperature-40 °C to 75 °C
Operating humidity10% to 90% non-condensing
Ingress Protection RatingIP30

REGULATORY & TYPE APPROVALS
RegulatoryCE/RED, UKCA, CB

EMC EMISSIONS & IMMUNITY
IMMUNITY StandardsEN 301 489-1 V2.2.3 EN 301 489-17 V3.2.4 Final draft EN 301 489-52 V1.2.0 EN 55032:2015+A1:2020 EN 55035:2017+A11:2020 EN 61000-3-3:2013+A1:2019 EN IEC 61000-3-2:2019
ESDEN 61000-4-2:2009
RSEN 61000-4-3:2020
EFTEN 61000-4-4:2012
Surge immunity (AC Power Line)EN 61000-4-5:2014+A1:2017
CSEN 61000-4-6:2014
DIPEN IEC 61000-4-11:2020

RF
StandardsEN 300 328 V2.2.2, EN 301 511 V12.5.1, EN 301 908-1 V13.1.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.1.1

SAFETY
StandardsEN IEC 62311:2020, EN 50665:2017, EN IEC 62368-1:2020+A11:2020, IEC 62368-1:2018
