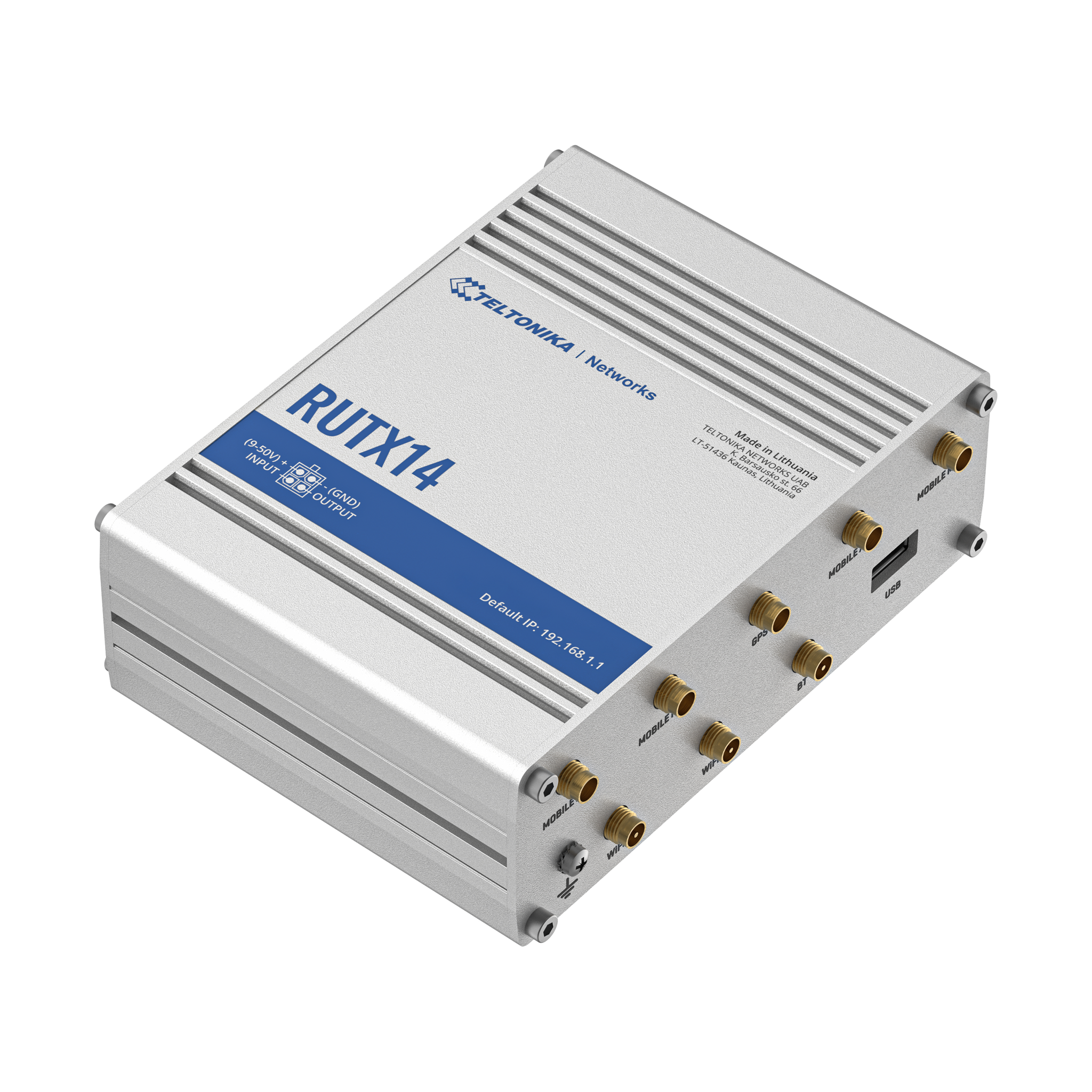

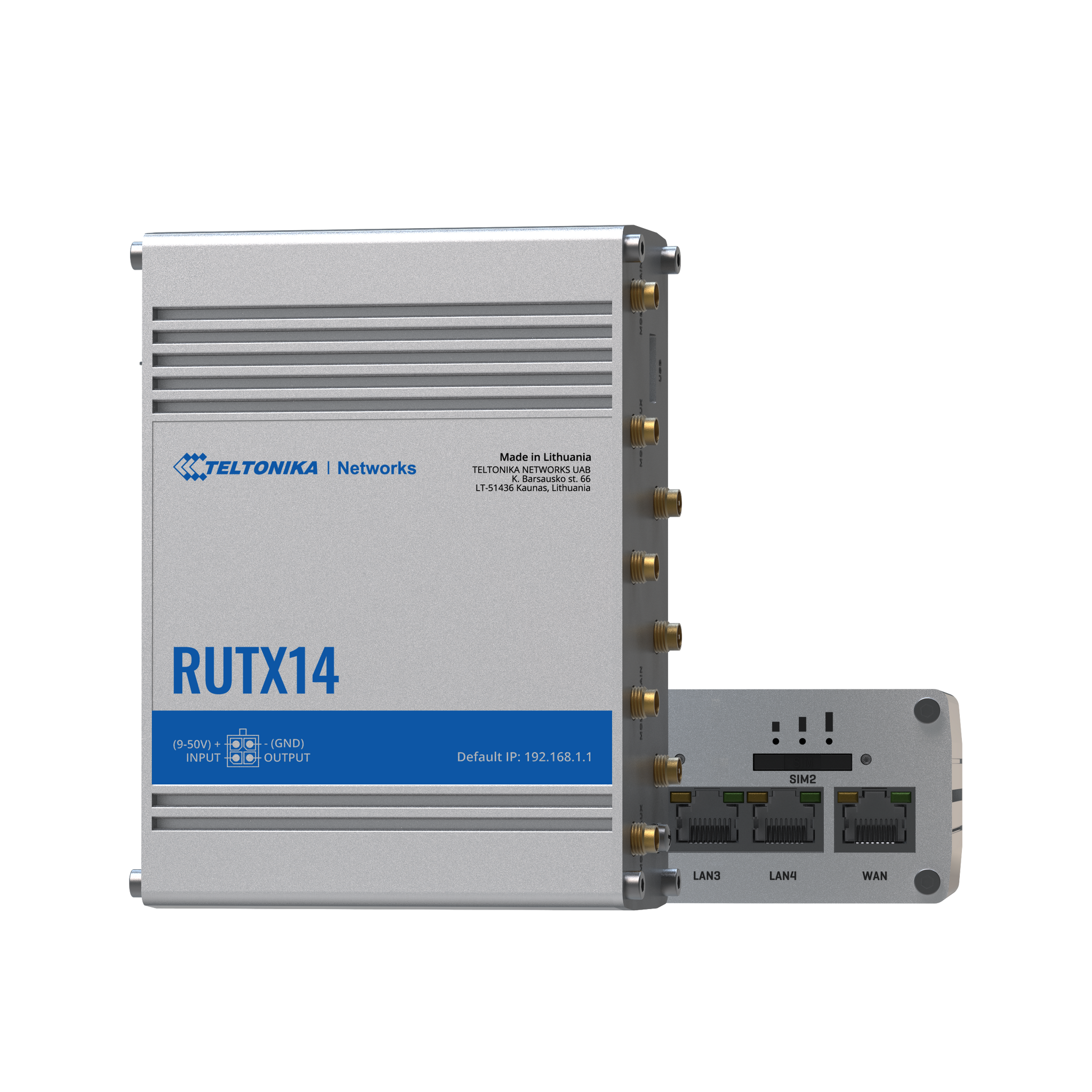

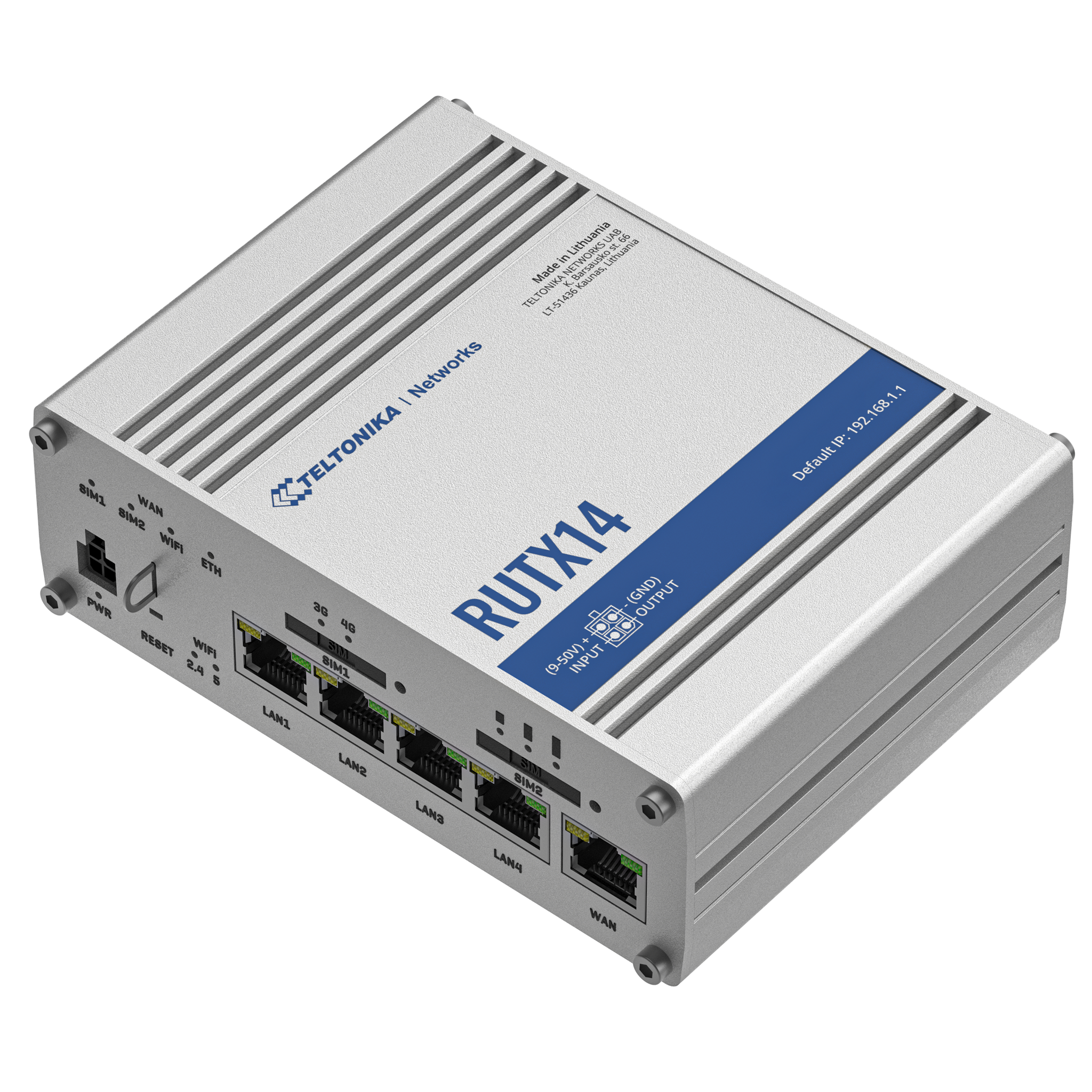

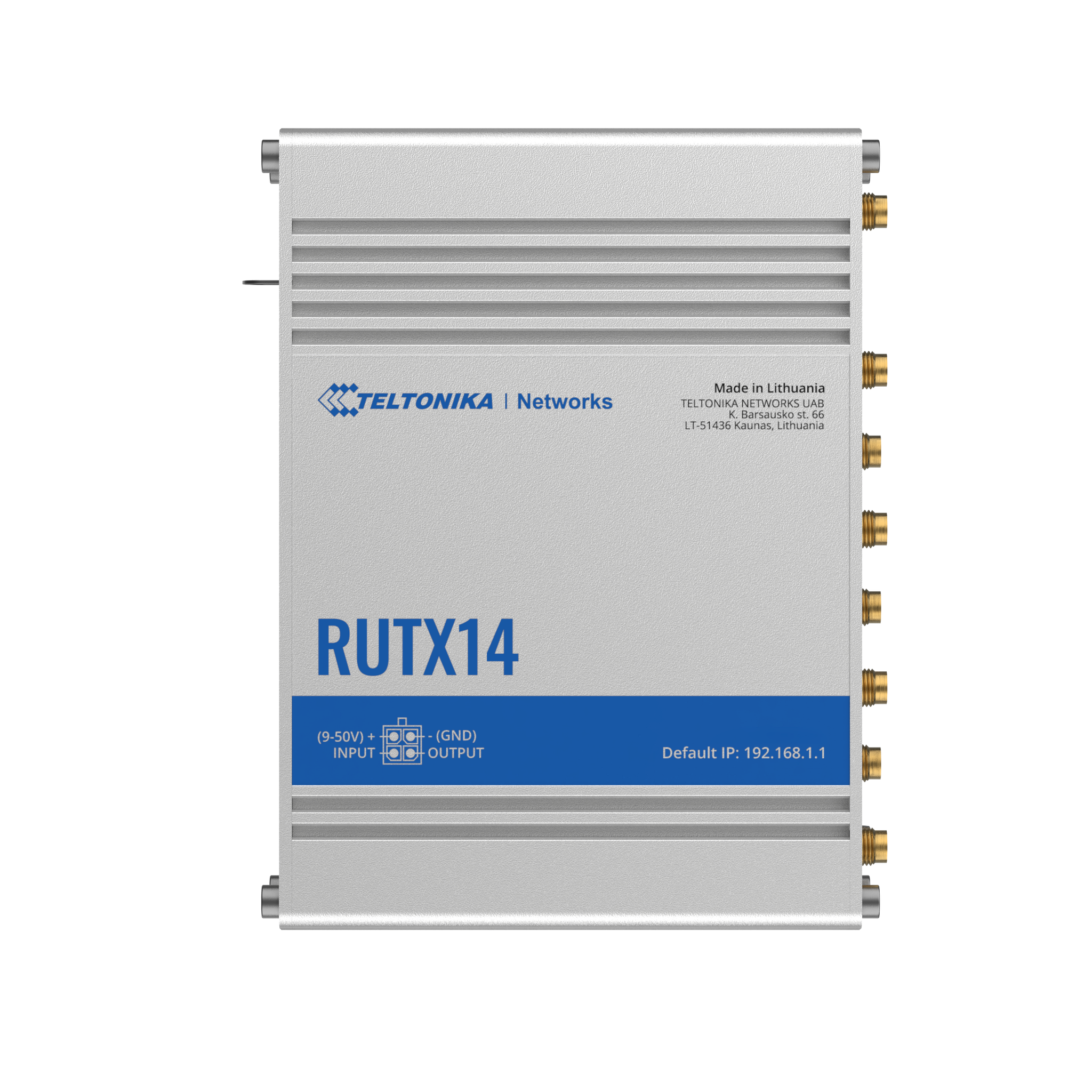

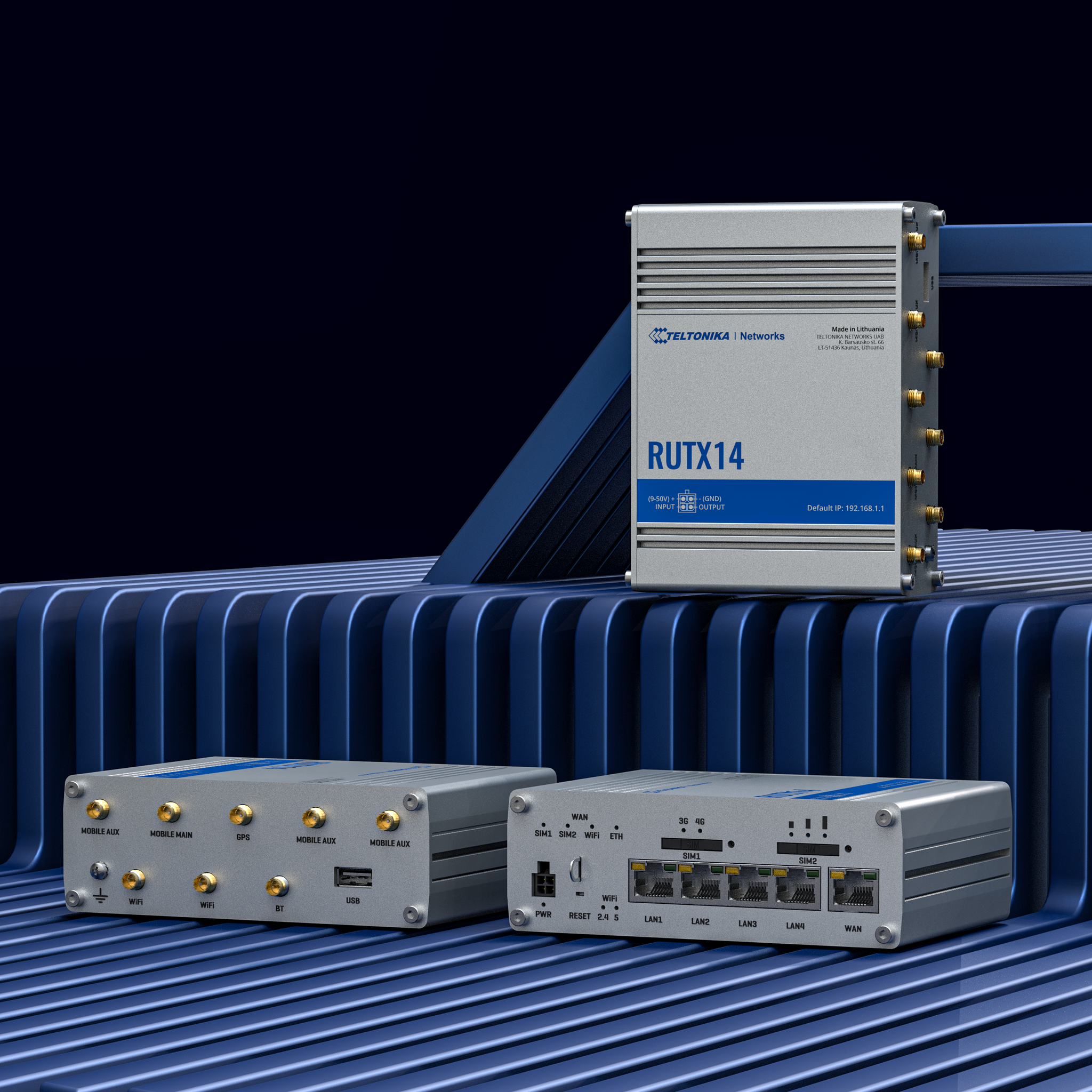

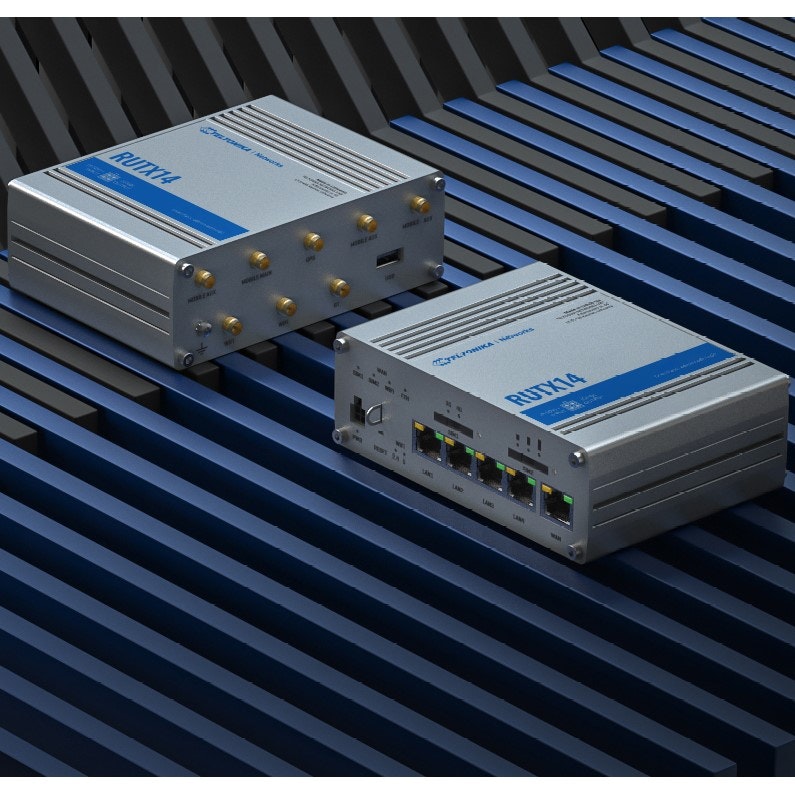

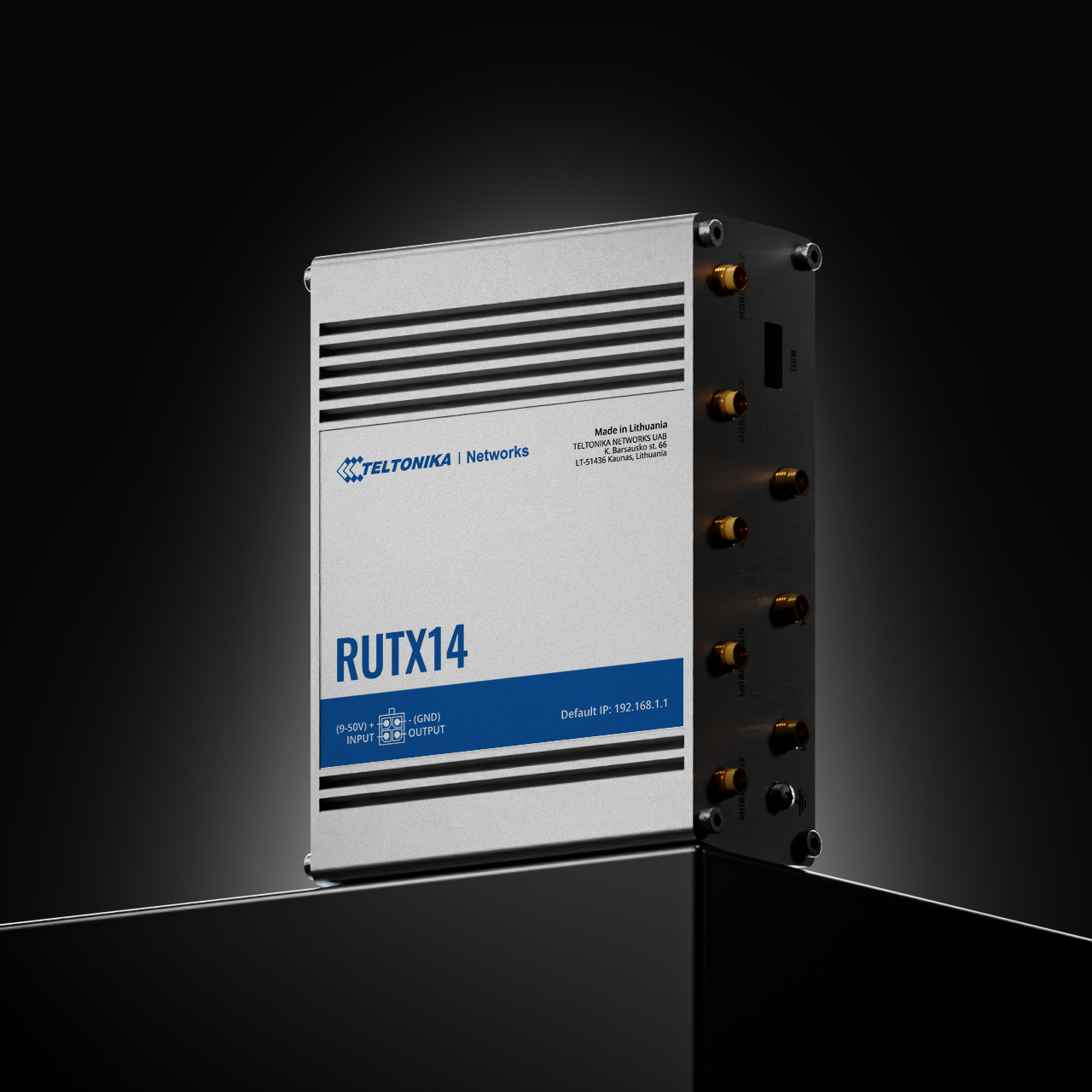

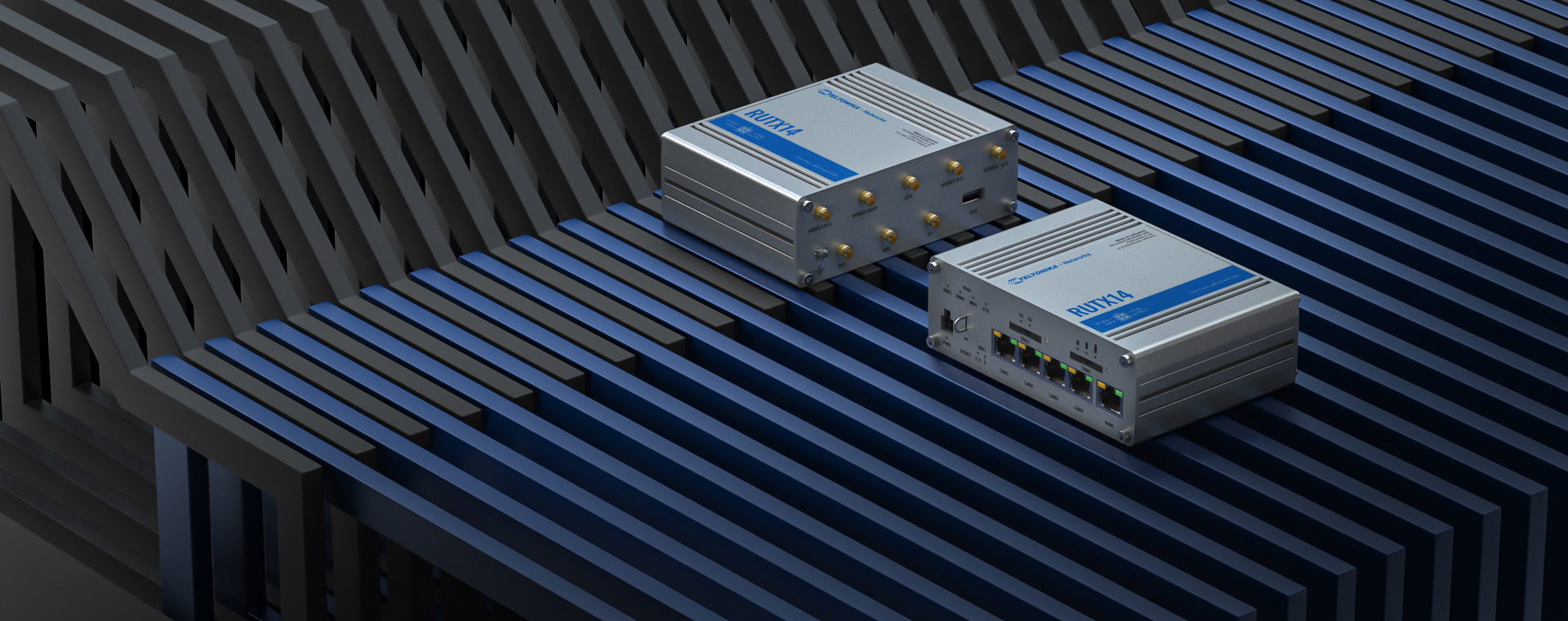

Teltonika RUTX14 4G LTE Cat 12 Industrial Cellular Router

  • 4 950,-
Lagerbalanse: 3 stk.
Artikkelnummer: tn-rutx14
EAN: 4779027312965
Del

RUTX14 is the fastest single modem LTE-A Cat 12 router in the Teltonika Networks product range. With two SIM cards, Wave-2 dual-band Wi-Fi, five Gigabit Ethernet ports, and automatic failover, you may expect high compatibility, unbeatable network resilience, and exceptional speed.

Flyer | Datasheet


PACKAGE CONTAINS

  • Router RUTX14
  • 24 W PSU
  • 4x LTE antennas (swivel, SMA male)
  • 2x Wi-Fi antennas (magnetic mount, RP-SMA male, 1.5 m cable)
  • 1x GNSS antenna (adhesive, SMA male, 3 m cable)
  • 1x Bluetooth antenna (magnetic mount, RP-SMA male, 1.5 m cable)
  • Ethernet cable (1.5 m)
  • SIM Adapter kit
  • QSG (Quick Start Guide)
  • Packaging box

FEATURES

MOBILE
SIM switch2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
StatusIMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
SMSSMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSDSupports sending and reading Unstructured Supplementary Service Data messages
Black/White listOperator black/white list (by country or separate operators)
Multiple PDNPossibility to use different PDNs for multiple network access and services
Band managementBand lock, Used band status display
SIM idle protection serviceWhen working with devices with two SIM slots, the one not currently in use will remain idle until the device switches to it, meaning that no data is used on the card until then
APNAuto APN
BridgeDirect connection (bridge) between mobile ISP and device on LAN
PassthroughRouter assigns its mobile WAN IP address to another device on LAN

WIRELESS
Wireless mode802.11b/g/n/ac Wave 2 (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
Wi-Fi securityWPA2-Enterprise - PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect
SSID/ESSIDESSID stealth mode
Wi-Fi usersUp to 150 simultaneous connections
Wireless Connectivity FeaturesWireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
Wireless MAC filterWhitelist, blacklist
Wireless QR code generatorOnce scanned, a user will automatically enter your network without needing to input login information.

NETWORK
HotspotCaptive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
RoutingStatic routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network protocolsTCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)
VoIP passthrough supportH.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoringPing Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
FirewallPort forward, traffic rules, custom rules
Firewall status pageView all your Firewall statistics, rules, and rule counters
Ports managementView device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
Network topologyVisual representation of your network, showing which devices are connected to which other devices
HotspotCaptive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
DHCPStatic and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
QoS / Smart Queue Management (SQM)Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNSSupported >25 service providers, others can be configured manually
Network backupWi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
Load balancingBalance Internet traffic over multiple WAN connections
SSHFSPossibility to mount remote file system via SSH protocol
VRF supportInitial virtual routing and forwarding (VRF) support

BLUETOOTH
Bluetooth 4.0Bluetooth low energy (LE) for short range communication

ETHERNET
WAN1 x WAN port  10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN 4 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

SECURITY
AuthenticationPre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & login attempts block, time-based login blocking, built-in random password generator
FirewallPre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Attack preventionDDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLANPort and tag-based VLAN separation
Mobile quota controlMobile data limit, customizable period, start time, warning limit, phone number
WEB filterBlacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
Access controlFlexible access control of SSH, Web interface, CLI and Telnet

VPN
OpenVPNMultiple clients and a server can run simultaneously, 27 encryption methods
OpenVPN EncryptionDES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
IPsecIKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
GREGRE tunnel, GRE tunnel over IPsec support
PPTP, L2TPClient/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
StunnelProxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPNMethod of building scalable IPsec VPNs
SSTPSSTP client instance support
ZeroTierZeroTier VPN client support
WireGuardWireGuard VPN client and server support
TincTinc offers encryption, authentication and compression in it's tunnels. Client and server support.
TailscaleTailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol

OPC UA
Supported modesClient, Server
Supported connection typesTCP

MODBUS
Supported modesServer, Client
Supported connection typesTCP, USB
Custom registersMODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
Supported data formats8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

DATA TO SERVER
ProtocolHTTP(S), MQTT, Azure MQTT, Kinesis
Data to serverExtract parameters from multiple sources and different protocols, and send them all to a single server

MQTT GATEWAY
Modbus MQTT GatewayAllows sending commands and receiving data from MODBUS Server through MQTT broker

DNP3
Supported modesStation, Outstation
Supported connectionTCP, USB

DLMS
DLMS SupportDLMS - standard protocol for utility meter data exchange
Supported modesClient
Supported connection typesTCP, USB

API
Teltonika Networks Web API (beta) supportExpand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

MONITORING & MANAGEMENT
WEB UIHTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
FOTAFirmware update from server, automatic notification
SSHSSH (v1, v2)
SMSSMS status, SMS configuration, send/read SMS via HTTP POST/GET
CallReboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
TR-069OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTTMQTT Broker, MQTT publisher
SNMPSNMP (v1, v2, v3), SNMP Trap
JSON-RPCManagement API over HTTP/HTTPS
RMSTeltonika Remote Management System (RMS)

IOT PLATFORMS
Cloud of ThingsAllows monitoring of: Device data, Mobile data, Network info, Availability
ThingWorxAllows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
CumulocityAllows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength
Azure IoT HubCan send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type

SYSTEM CHARACTERISTICS
CPUQuad-core ARM Cortex A7, 717 MHz
RAM256 MB, DDR3
FLASH storage256 MB, SPI Flash


FIRMWARE / CONFIGURATION
WEB UIUpdate FW from file, check FW on server, configuration profiles, configuration backup
FOTAUpdate FW
RMSUpdate FW/configuration for multiple devices at once
Keep settingsUpdate FW without losing current configuration
Factory settings resetA full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

FIRMWARE CUSTOMISATION
Operating systemRutOS (OpenWrt based Linux OS)
Supported languagesBusybox shell, Lua, C, C++, and Python, Java in Package manager
Development toolsSDK package with build environment provided
GPL customizationYou can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs

LOCATION TRACKING
GNSSGPS, GLONASS, BeiDou, Galileo and QZSS
CoordinatesGNSS coordinates via WebUI, SMS, TAVL, RMS
NMEANMEA 0183
NTRIPNTRIP protocol (Networked Transport of RTCM via Internet Protocol)
Server softwareSupported server software TAVL, RMS
GeofencingConfigurable multiple geofence zones

USB
Data rateUSB 2.0
ApplicationsSamba share, USB-to-serial
External devicesPossibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter
Storage formatsFAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4

INPUT / OUTPUT
Input1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
Output1 x Digital Output, Open collector output, max output 30 V, 300 mA
EventsEmail, RMS, SMS
I/O jugglerAllows to set certain I/O conditions to initiate event

POWER
Connector4-pin industrial DC power socket
Input voltage range9 - 50 VDC, reverse polarity protection, voltage surge/transient protection
PoE (passive)Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 50 VDC
Power consumptionIdle: < 4 W, Max: < 22 W

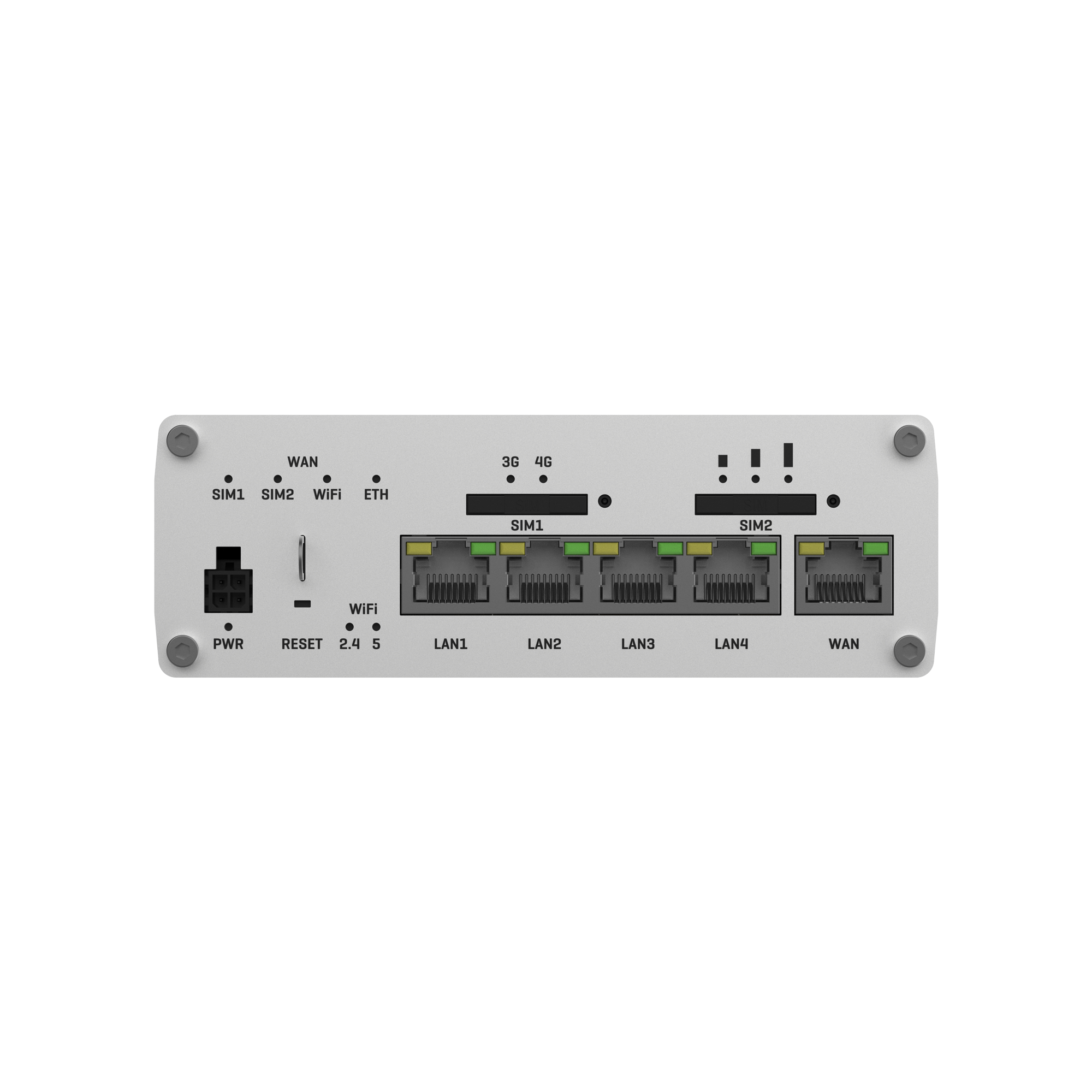

PHYSICAL INTERFACES
Ethernet5 x RJ45 ports, 10/100/1000 Mbps
I/O’s1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs2 x connection status LEDs, 3 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1 x Power LED, 2 x 2.4G and 5G Wi-Fi LEDs
SIM2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders
Power1 x 4-pin power connector

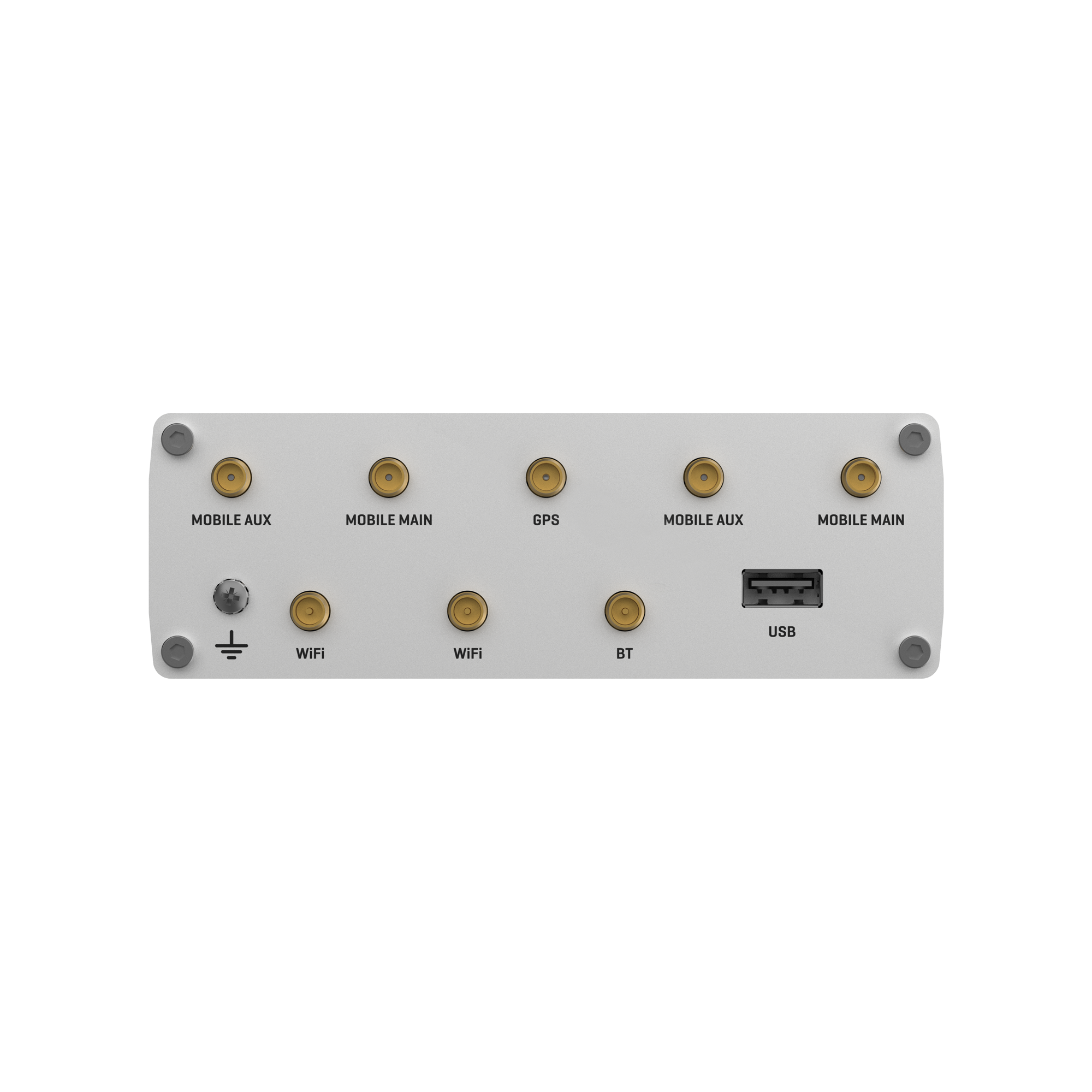

Antennas4 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GNNS
USB1 x USB A port for external devices
ResetReboot/User default reset/Factory reset button
Other

1 x Grounding screw

PHYSICAL SPECIFICATION
Casing materialFull aluminium housing
Dimensions (W x H x D)132 x 44 x 95 mm
Weight515 g
Mounting optionsDIN rail, wall mount, flat surface (all require additional kit)

OPERATING ENVIRONMENT
Operating temperature-40 °C to 75 °C
Operating humidity10% to 90% non-condensing
Ingress Protection RatingIP30

REGULATORY & TYPE APPROVALS
RegulatoryCE, UKCA, RCM, UCRF, CITC, Kenya, ICASA, ANRT, NTC, SIRIM, GCF, CB, RoHS, REACH

EMC EMISSIONS & IMMUNITY
StandardsEN 55032:2015 + A1:2020
EN 55035:2017 + A11:2020
EN IEC 61000-3-2:2019
EN 61000-3-3:2013 + A1:2019
EN 301 489-1 V2.2.3
EN 301 489-17 V3.2.4
Draft EN 301 489-19 V2.2.0
Draft EN 301 489-52 V1.1.2
ESDEN 61000-4-2:2009
Radiated ImmunityEN IEC 61000-4-3:2020
EFTEN 61000-4-4:2012
Surge Immunity (AC Mains Power Port)EN 61000-4-5:2014 + A1:2017
CSEN 61000-4-6:2014
DIPEN IEC 61000-4-11:2020

RF
StandardsEN 300 328 V2.2.2
EN 301 893 V2.1.1
EN 300 440 V2.2.1
EN 301 908-1 V13.1.1
EN 301 908-2 V13.1.1
EN 301 908-13 V13.1.1
EN 303 413 V1.1.1

SAFETY
StandardsCE: EN 62368-1:2014 + A11:2017, EN 62232:2017, EN 50385:2017
UL/CSA Safety: UL 62368-1 (3rd Ed., Rev. December 13, 2019), CAN/CSA C22.2 No. 62368-1:19 (3rd Ed., Rev. December 13, 2019)
CB: IEC 62368-1:2018
