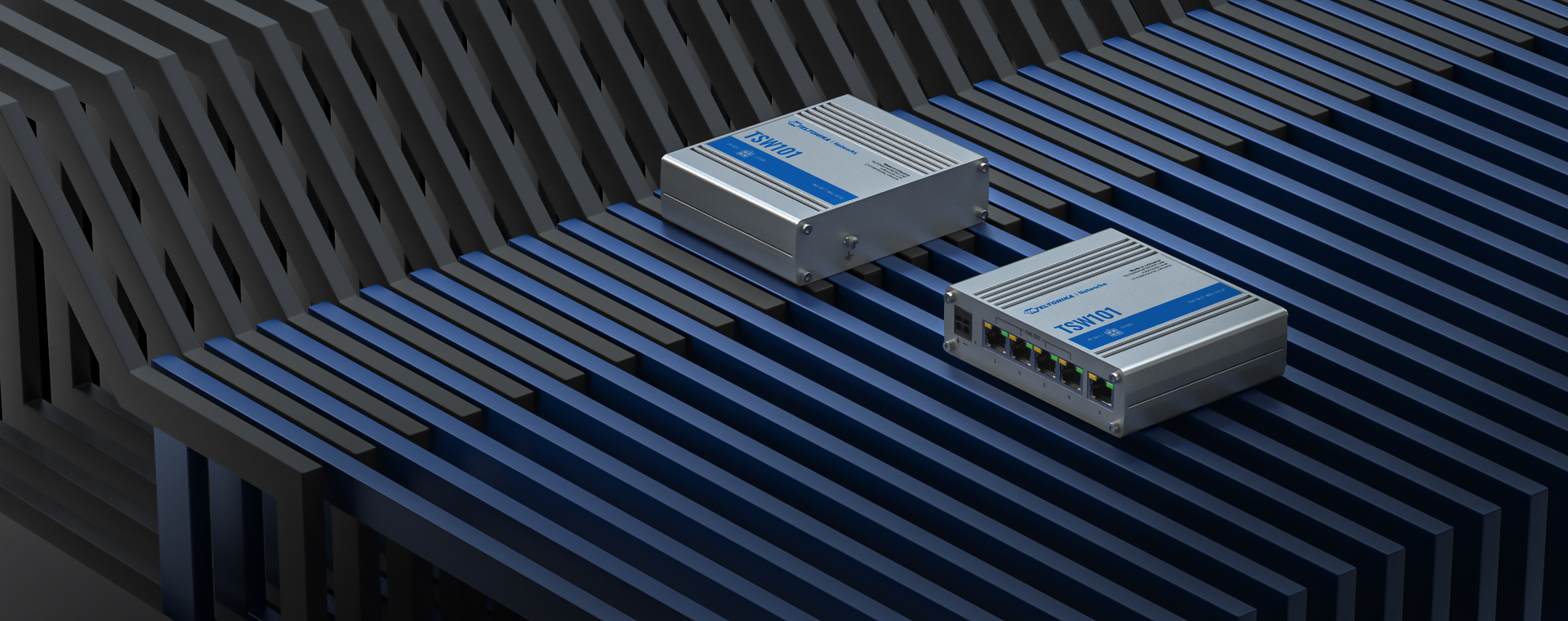

Teltonika TSW101 Automotive PoE+ Switch
- 795,-
Lagerbalanse:
9 stk.
Artikkelnummer:
tn-tsw101
EAN:
4779051840113
The TSW101 is a plug-and-play automotive switch dedicated to in-vehicle applications. Featuring five Gigabit Ethernet ports, including four with PoE+ support, the TSW101 can power your end devices while connecting them to the Internet. This automotive switch can be powered by 12 V or 24 V car battery, requiring no additional PSU.
PACKAGE CONTAINS
- TSW101
- QSG (Quick Start Guide)
- Packaging box
FEATURES
ETHERNET | |
ETH | 5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover |
IEEE 802.3 series standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
POE OUT | |
PoE ports | Port 1-4 |
PoE Max Power per Port (at PSE) | 30 W |
Total PoE Power Budget (at PSE) | 60 W |
Maximum Ethernet cable length | 100 m |
PoE standards | 802.3af and 802.3at Alternative A |
Performance Specifications | |
Bandwidth (Non-blocking) | 10 Gbps |
Packer buffer | 128 KB |
MAC address table size | 2K entries |
Jumbo frame support | 9216 bytes |
Power | |
Connector | 2-pin industrial DC power socket |
Input voltage range | 9 – 30 VDC |
PoE-out input voltage range | 9 – 30 VDC |
Power consumption | Idle: 0.64 W / Max: 2.31 W / PoE Max: 62.3 W |
PSU | 12 V or 24 V car battery-powered. No additional PSU is required. |
Physical Interfaces | |
Ethernet | 5 x RJ45 ports, 10/100/1000 Mbps |
Status LEDs | 1 x Power LED, 10 x ETH status LEDs |
Power | 1 x 2-pin industrial DC power socket |
Other | 1 x Grounding screw |
Physical Specification | |
Casing material | Aluminium housing |
Dimensions (W x H x D) | 115 x 32 x 95 mm |
Weight | 384 g |
Mounting options | DIN rail, wall mount, flat surface (all require additional kit) |
Operating Environment | |
Operating temperature | -40 °C to 75 °C |
Operating humidity | 5% to 95% non-condensing |
Ingress Protection Rating | IP30 |
Regulatory & Type Approvals | |
Regulatory | CE, REACH, RoHS, WEEE TSW101 CE TSW101 UKCA TSW101 FCC TSW101 IC TSW101 CB TSW101 RCM E-Mark |
EMC Emissions & Immunity | |
Standards | EN 55032:2015 + A11:2020 + A1:2020 EN 55035:2017 + A11:2020 |
ESD | EN 61000-4-2:2009 |
Radiated Immunity | EN IEC 61000-4-3:2020 |
EFT | EN 61000-4-4:2012 |
Surge immunity (AC Power Line) | EN 61000-4-5:2014 + A1:2017 |
CS | EN 61000-4-6:2014 |
Safety | |
Standards | CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020, EN 50665:2017 RCM: AS/NZS 62368.1:2022 CB: IEC 62368-1:2018 |
