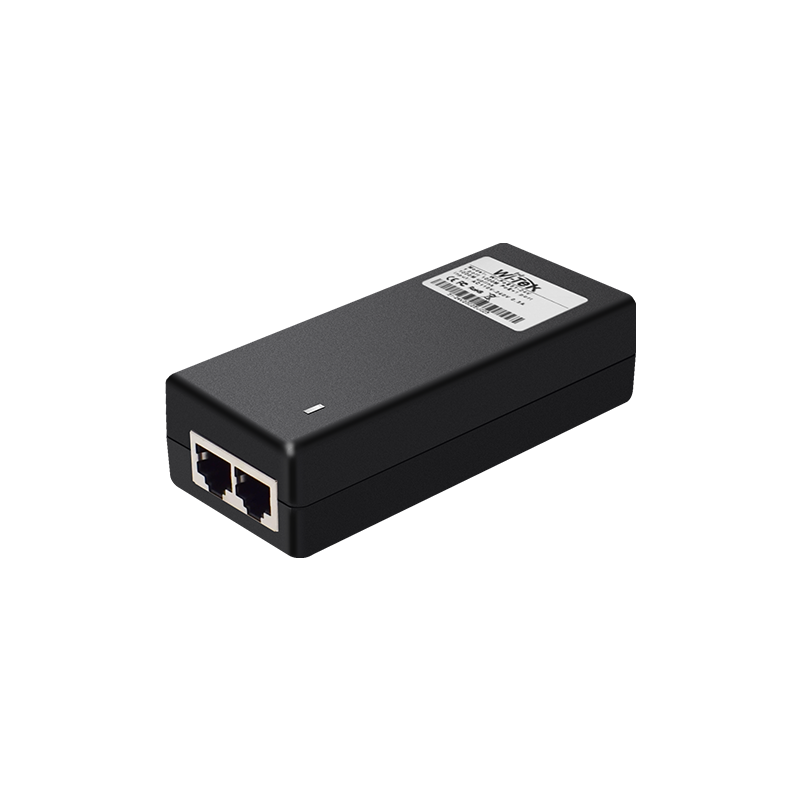

Wi-Tek Gigabit PoE Injector til overvåkningskamera
- 295,-
Lagerbalanse:
2 stk.
Artikkelnummer:
wi-poe51-48v
EAN:
6418296000286
Spesifikasjoner

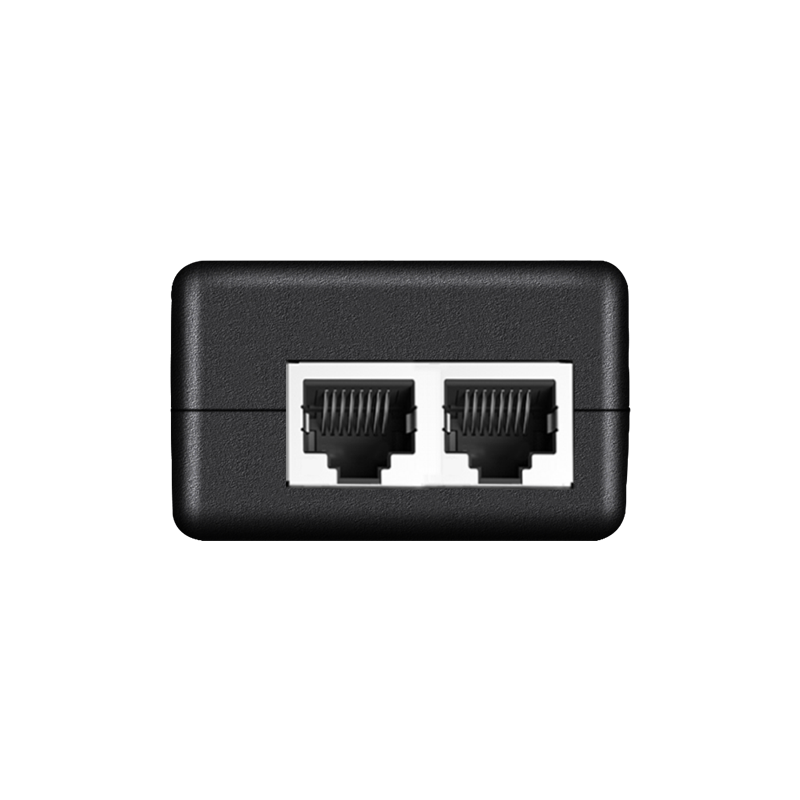

Interfaces | 1 x 100Mbps/1000Mbps RJ45 LAN port 1 x 100Mbps/1000Mbps PoE port |
PoE Standard | 802.3 af/at |
PoE Power Supply Type | Mid-span and End-span |
PoE Output Power | 48V 0.5A Max |
PoE Pin Assignment | 1/2(+), 3/6(-) |
PoE Power Budget | 30W Max |
Input Power | 100 ~ 240VAC 50/60Hz 0.3A Max |
LED Indicators | Blinking: Abnormal power reception On: the device power on is normal Off: the device is power off or failed |
Fan Quantity | Fanless |
Injector Dimension | 114*48*30 mm |
Package Dimension | 200*132*42 mm |
Net Weight | 0.12 kg |
Package Weight | 0.26 kg |
Installation | Desktop |
Surge Immunity | IEC 61000-4-5 Common mode 3kV Differential mode 2kV |
ESD Protection | IEC 61000-4-2 Contact discharge 6kV Air discharge 8kV |
Operating Temperature | -10℃ to 55℃ (14℉ to 131℉) |
Operating Humidity | 5% ~ 90% RH no condensation |
Storage Temperature | -40℃ to 75℃(-40℉ to 167℉) |
Storage Humidity | 5%~95% RH no condensation |
Certification | CE, FCC, RoHS, UKCA, RCM |
