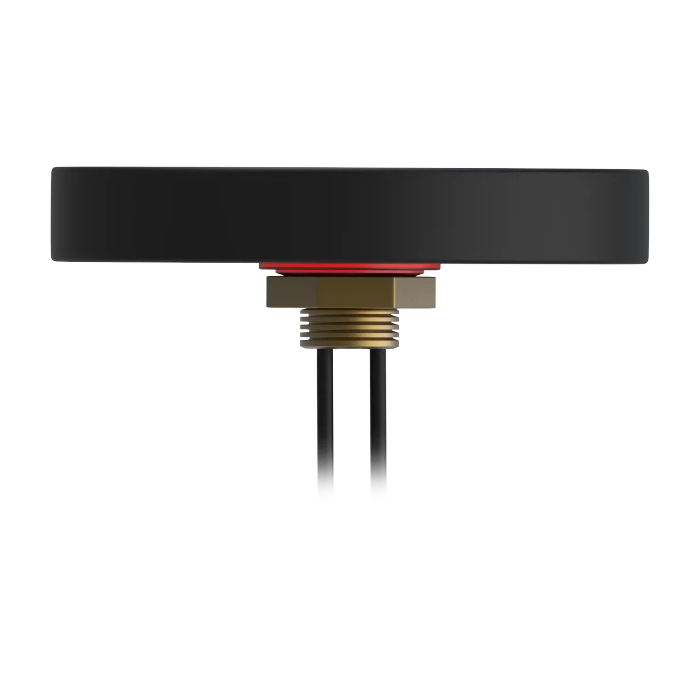

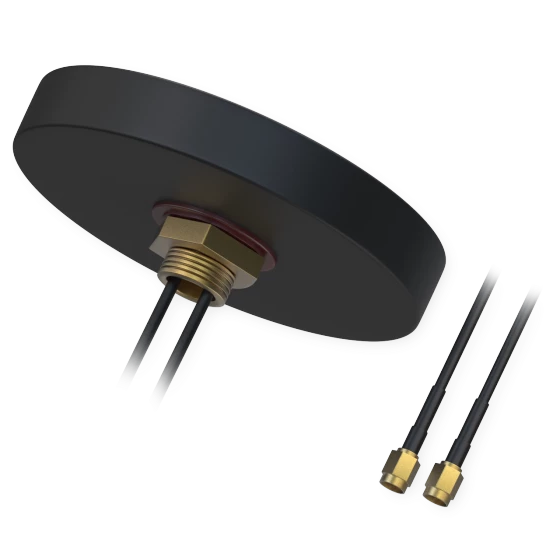

Teltonika Combo MIMO Mobile Roof SMA Antenna

  • 285,-
Lagerbalanse: 9 stk.
Artikkelnummer: tn-pr1kcl25
EAN: 4779051840311
Se mer informasjon
Del

Datasheet


TECHNICAL DATA

MECHANICAL/ENVIRONMENTAL
Mounting methodScrew
Radome ingress protection ratingIP65 (exclude cable outlet)
Radome materialUV resistant plastic and cable
Housing dimensionsØ 81.3 x 15.2 mm

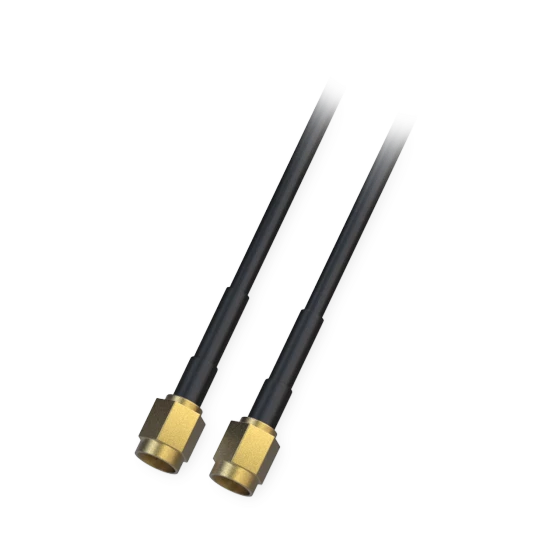

Cable2x RG174, 3000 mm
Operating temperature- 40 - +85 °C
Weight157 ± 10 g
UV resistance✓
RoHS Compliant✓

LTE ANTENNA
Frequency range698 – 960, 1710 – 2690 MHz
PolarizationLinear
Main antenna gain2.5 dBi
Aux antenna gain2.0 dBi
V.S.W.R< 3.0
Impedance50 Ω
Connector type and count2x SMA Male
