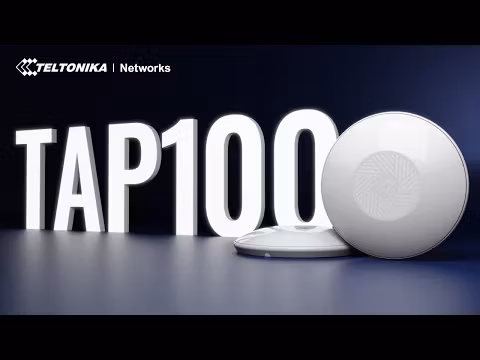

Teltonika TAP100 Wi-Fi Access Point med PoE-Injektor

  • 795,-
Leverandørlager (sendes normalt etter ca. 1 uke).
Artikkelnummer: tn-tap100-poe
EAN: 5715063325551
Se mer informasjon
Del

TAP100 is the first-ever Teltonika Networks Access Point, perfect for strengthening Wi-Fi coverage in small enterprise and commercial spaces. This PoE-in access point can be powered by active PoE devices via its RJ45 port and was designed with simplicity and ease of installation in mind.

Flyer | Datasheet


PACKAGE CONTAINS

  • Access Point TAP100
  • EU PoE injector
  • QSG (Quick Start Guide)
  • Wi-Fi Information sticker
  • Packaging box

FEATURES

WIRELESS
Wireless modeIEEE 802.11b/g/n (Wi-Fi 4)
Wi-Fi securityWPA2-EAP/WPA3-EAP Mixed Mode, WPA3-EAP, WPA2-PSK/WPA3-SAE Mixed Mode, WPA3-SAE, OWE, WPA-PSK/WPA2-PSK Mixed Mode, WPA2-PSK, WPA2-EAP; AES-CCMP, TKIP, Auto Cipher modes, client separation
SSID/ESSIDSSID stealth mode and access control based on MAC address
Wi-Fi usersUp to 100 simultaneous connections
Wireless Connectivity FeaturesFast roaming (802.11r), BSS transition management (802.11v), radio resource measurement (802.11k)
Wireless MAC filterWhitelist, blacklist
Wireless QR code generatorOnce scanned, a user will automatically enter your network without needing to input login information.

ETHERNET
Ethernet1 x RJ45 port 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

NETWORK
Network protocolsTCP, UDP, IPv4, IPv6, ICMP, HTTP, HTTPS, SSL v3, TLS, ARP, SSH, DHCP client

SECURITY
AuthenticationPre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block
VLANTag-based VLAN separation

API
Teltonika Networks Web API (beta) supportExpand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

MONITORING & MANAGEMENT
WEB UIHTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
FOTAFirmware update from server, automatic notification
SSHSSH (v1, v2)
EmailReceive email message status alerts of various services
JSON-RPCManagement API over HTTP/HTTPS
RMSTeltonika Remote Management System (RMS)

SYSTEM CHARACTERISTICS
CPUMediatek, 580 MHz, MIPS 24KEc
RAM64 MB, DDR2
FLASH storage16 MB, SPI Flash

FIRMWARE / CONFIGURATION
WEB UIUpdate FW from file, check FW on server, configuration profiles, configuration backup
FOTAUpdate FW
RMSUpdate FW/configuration for multiple devices at once
Keep settingsUpdate FW without losing current configuration

FIRMWARE CUSTOMISATION
Operating systemRutOS (OpenWrt based Linux OS)
Supported languagesBusybox shell, Lua, C, C++
Development toolsSDK package with build environment provided
GPL customizationYou can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs.

POWER
ConnectorRJ45 Socket
Input voltage range44.0 – 57.0 V
PoE standards802.3af PoE Class 1
Power consumption< 2 W Max

PHYSICAL INTERFACES
Ethernet1 x RJ45 ports, 10/100 Mbps
Status LEDs1 x Power LED (can be turned off from web-UI)
Antennas2 x Internal for 2.4 GHz Wi-Fi
Antennas specifications2 x 2400 - 2500 MHz, 50 Ω, VSWR <2.7, gain < 4.9 dBi, omnidirectional
ResetReboot/User default reset/Factory reset button

PHYSICAL SPECIFICATION
Casing materialUV stabilized plastic
Dimensions Ø 158 mm x 30 mm
Weight190 g
Mounting optionsAP mounting bracket (for ceiling mount)

OPERATING ENVIRONMENT
Operating temperature-40 °C to 75 °C
Operating humidity10% to 90% non-condensing
Ingress Protection RatingIP30

REGULATORY & TYPE APPROVALS
RegulatoryCE, UKCA, CB, FCC, IC, WEEE

EMC EMISSIONS & IMMUNITY
StandardsEN 55032:2015+A11:2020
EN 55035:2017+A11:2020
EN 61000-3-3:2013+A1:2019+A2:2021
EN IEC 61000-3-2:2019+A1:2021
EN 301 489-1 V2.2.3
EN 301 489-17 V3.2.4
ESDEN 61000-4-2:2009
Radiated ImmunityEN IEC 61000-4-3:2020
EFTEN 61000-4-4:2012
Surge Immunity (AC Mains Power Port)EN 61000-4-5:2014 + A1:2017
CSEN 61000-4-6:2014
DIPEN IEC 61000-4-11:2020

RF
StandardsEN 300 328 V2.2.2

SAFETY
StandardsIEC 62368-1:2018
EN IEC 62368-1:2020+A11:2020
EN IEC 62311:2020
