Teltonika TAP200 Wi-Fi 5 Access Point med PoE-Injektor

  • 845,-
Lagerbalanse: 3 stk.
Artikkelnummer: tn-tap200-poe
EAN: 4779051840199
Se mer informasjon
Del

Equipped with dual-band technology, fast roaming, and an RJ45 port with PoE-in functionality, the Teltonika Networks TAP200 is a Wi-Fi 5 wireless access point designed to enhance Wi-Fi coverage in medium-density spaces where high network performance is essential. The TAP200 features an integrated mounting bracket for quick and easy installation, and a sleek design to seamlessly blend into retail, enterprise, or any other environment.

Flyer | Datasheet


PACKAGE CONTAINS

  • Access Point TAP200
  • EU PoE injector
  • QSG (Quick Start Guide)
  • Wi-Fi Information sticker
  • Packaging box

FEATURES

WIRELESS
Wireless mode802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO)
Wi-Fi securityWPA2-EAP/WPA3-EAP Mixed Mode, WPA3-EAP, WPA2-PSK/WPA3-SAE Mixed Mode, WPA3-SAE, OWE, WPA-PSK/WPA2-PSK Mixed Mode, WPA2-PSK, WPA2-EAP; AES-CCMP, TKIP, Auto Cipher modes, isolate clients
SSID/ESSIDESSID stealth mode (Hide SSID)
Wi-Fi usersUp to 100 simultaneous connections
Wireless mesh/roamingFast roaming (802.11r)
Wireless MAC filterWhitelist, blacklist
Wireless QR code generatorOnce scanned, a user will automatically enter your network without needing to input login information.

ETHERNET
Ethernet1 x RJ45 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

NETWORK
Network protocolsTCP, UDP, IPv4, IPv6, ICMP, HTTP, HTTPS, SSL/TLS, ARP, SSH, DHCP client, SNMP

SECURITY
AuthenticationSSH key based, HTTPS, CLI, IP & Login attempts block
VLANTag-based VLAN separation

MONITORING & MANAGEMENT
WEB UIHTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
FOTAFirmware update from server, automatic notification
SSHSSH (v1, v2)
JSON-RPCManagement API over HTTP/HTTPS
RMSTeltonika Remote Management System (RMS)

SYSTEM CHARACTERISTICS
CPUMediaTek, Dual-Core, 880 MHz, MIPS 1004Kc
RAM256 MB, DDR3
FLASH storage16MB, SPI NOR Flash

FIRMWARE / CONFIGURATION
WEB UIUpdate FW from file, check FW on server, configuration profiles, configuration backup
FOTAUpdate FW
RMSUpdate FW/configuration for multiple devices at once
Keep settingsUpdate FW without losing current configuration

FIRMWARE CUSTOMISATION
Operating systemRutOS (OpenWrt based Linux OS)
Supported languagesBusybox shell, Lua, C, C++
Development toolsSDK package with build environment provided
GPL customizationYou can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs.

POWER
ConnectorRJ45 Socket
Input voltage range44.0 – 57.0 V
PoE standards802.3af PoE Class 1
Power consumptionIdle: < 4 W / Max: < 5.5 W

PHYSICAL INTERFACES

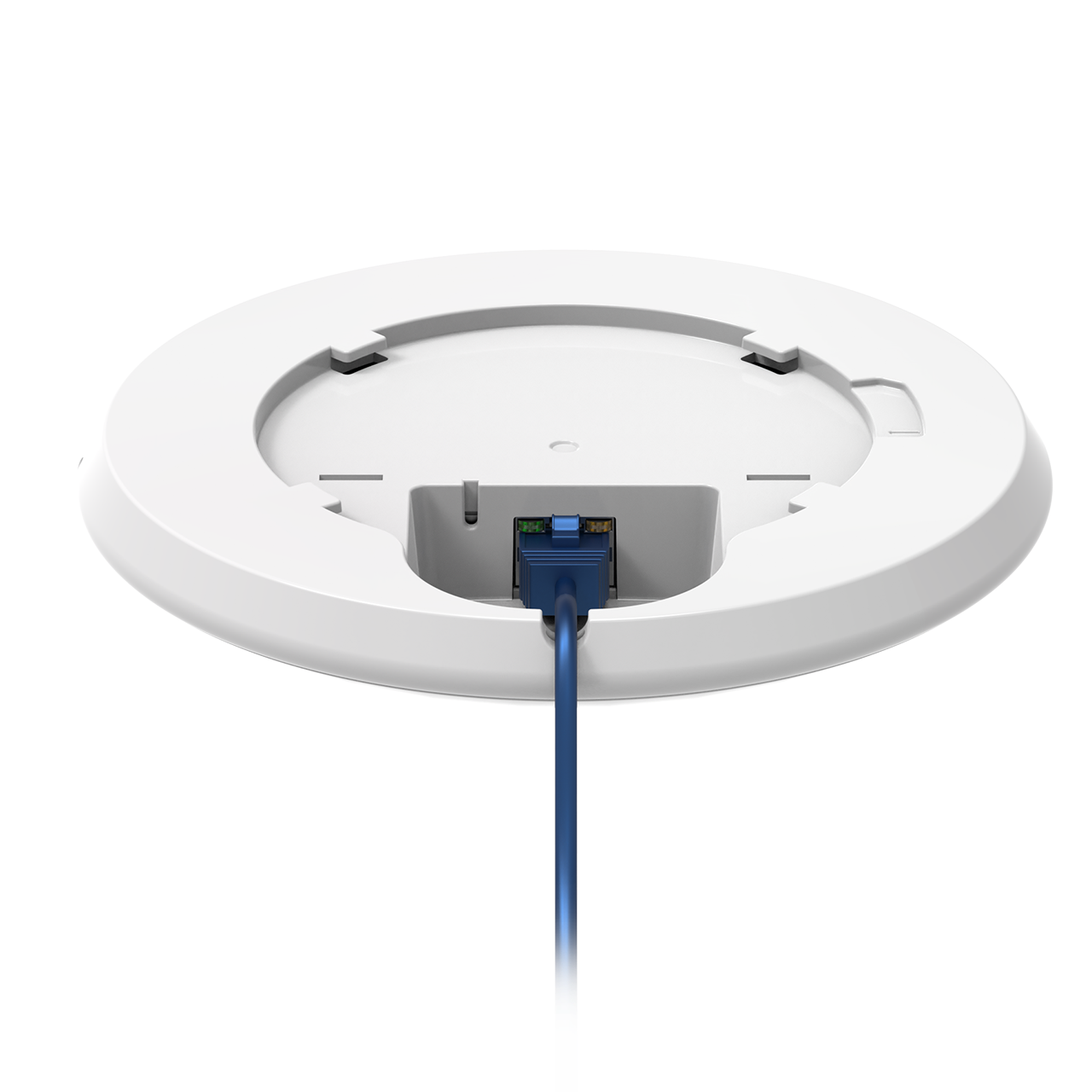

Ethernet1 x RJ45 port, 10/100/1000 Mbps
Status LEDs1 x Power LED (can be turned off from web-UI)
Antennas2 x Internal for 2.4 GHz Wi-Fi, 2 x Internal for 5 GHz Wi-Fi
Antennas specifications2 x 2400 - 2500 MHz, 50 Ω, VSWR <2.7, gain < 4.9 dBi, omnidirectional
2 x 5150 - 5850 MHz, 50 Ω, VSWR <2, gain < 5.02 dBi, omnidirectional
ResetReboot/User default reset/Factory reset button

PHYSICAL SPECIFICATION
Casing materialUV stabilized plastic
DimensionsØ 158 mm x 30 mm
Weight190 g

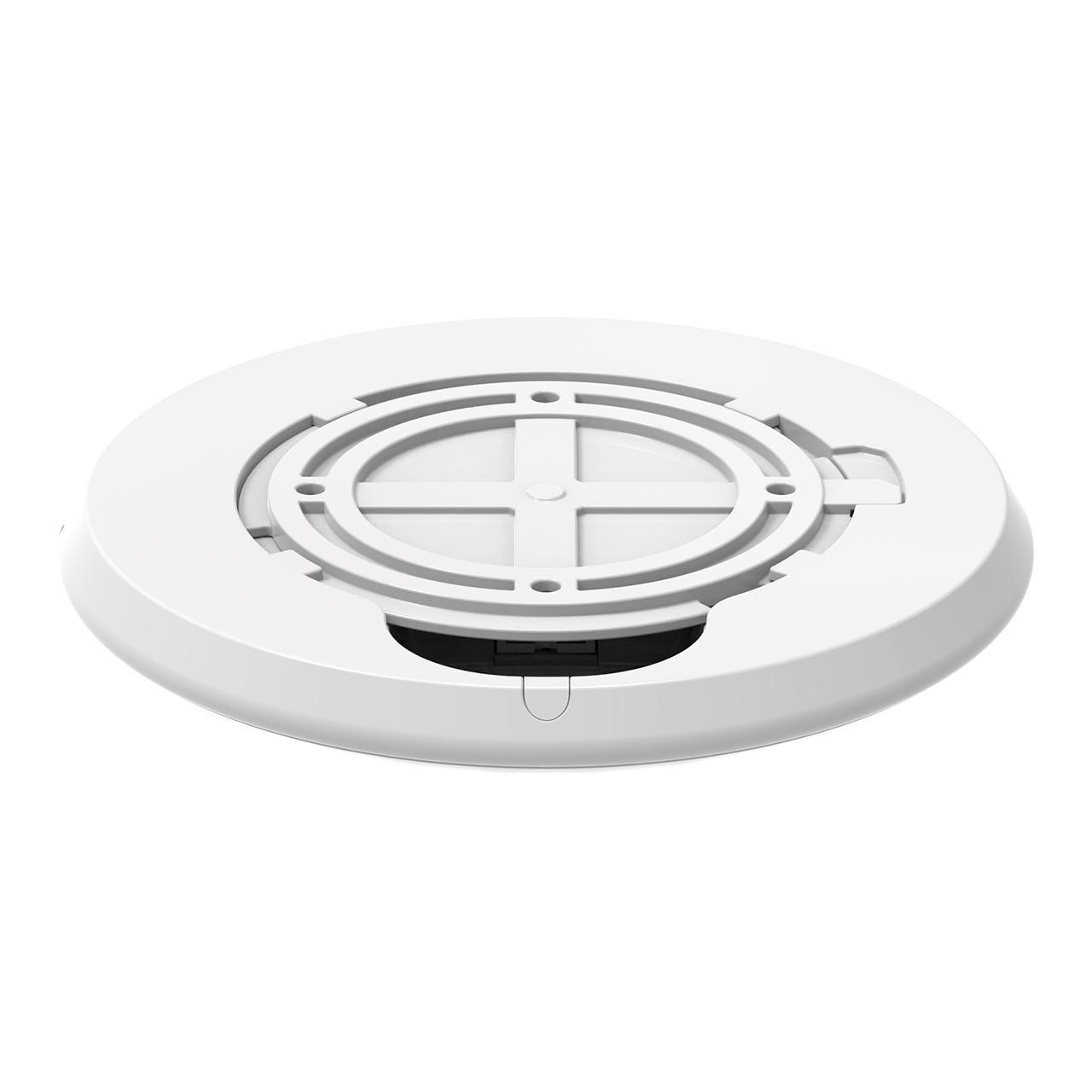

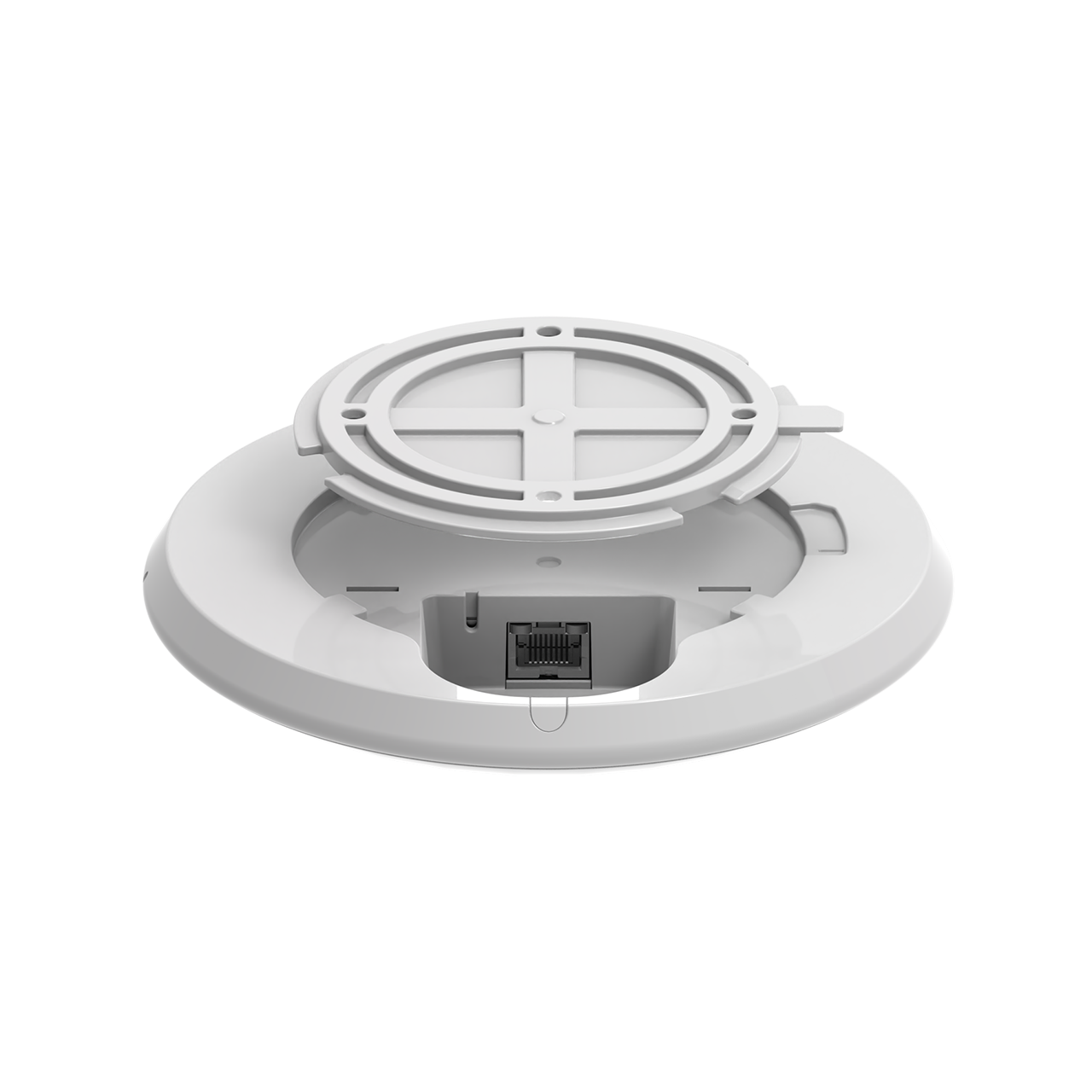

Mounting optionsAP Mounting Bracket (for ceiling mount)

OPERATING ENVIRONMENT
Operating temperature-40 °C to 75 °C
Operating humidity10% to 90% non-condensing
Ingress Protection RatingIP30

REGULATORY & TYPE APPROVALS
RegulatoryCE, UKCA, FCC, IC, RCM, CB, EAC, UCRF, WEEE

EMC EMISSIONS & IMMUNITY
StandardsEN 55032:2015+A11:2020
EN 55035:2017+A11:2020
EN 61000-3-3:2013+A1:2019+A2:2021
EN IEC 61000-3-2:2019+A1:2021
EN 301 489-1 V2.2.3
EN 301 489-17 V3.2.4
ESDEN 61000-4-2:2009
Radiated ImmunityEN IEC 61000-4-3:2020
EFTEN 61000-4-4:2012
Surge protectionEN 61000-4-5:2014+A1:2017
CSEN 61000-4-6:2014
DIPEN IEC 61000-4-11:2020

RF
StandardsEN 300 328 V2.2.2; EN 300 893 V2.1.1; EN 300 440 V2.2.1

SAFETY
StandardsIEC 62368-1:2018
EN IEC 62368-1:2020+A11:2020
EN IEC 62311:2020
