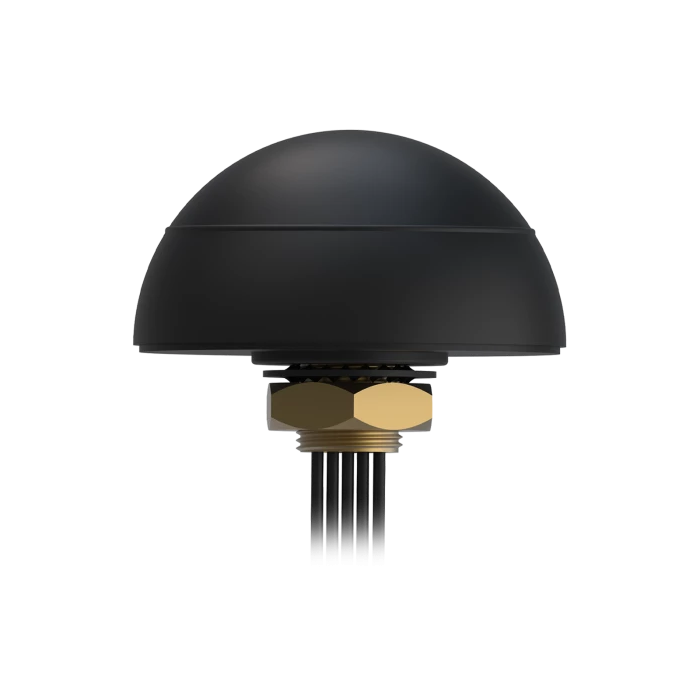

Teltonika Combo MIMO Mobile/GNSS/Wi-Fi roof SMA Antenna

  • 695,-
Lagerbalanse: 2 stk.
Artikkelnummer: tn-pr1kco28
EAN: 5704174528579
Se mer informasjon
Del

Datasheet


TECHNICAL DATA

MECHANICAL/ENVIRONMENTAL
Mounting methodScrew
Radome ingress protection ratingIP65 (exclude cable outlet)
Radome materialABS
Housing dimensionsØ 110 x 55 mm

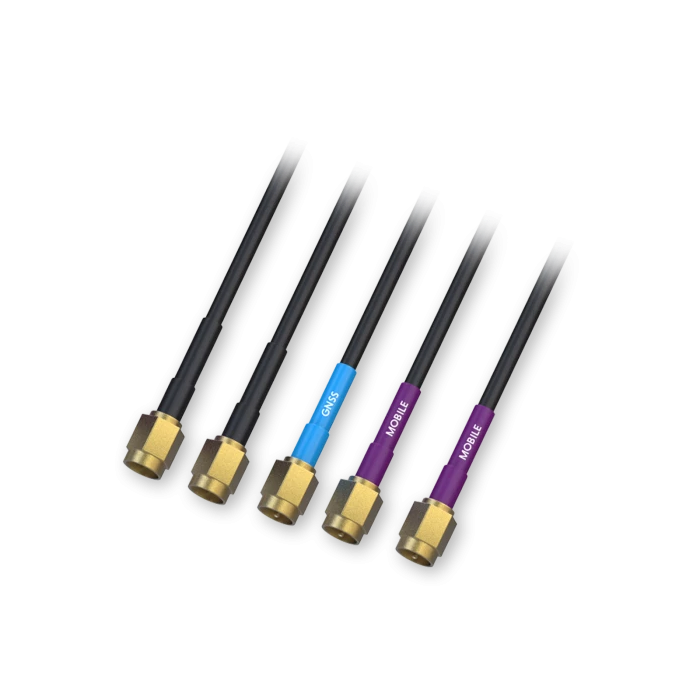

Cable5x RG174, 3000 mm
Operating temperature- 40 ~ +85 °C
Weight535 ± 10 g
RoHS Compliant✓

GNSS ANTENNA
Frequency range1575.42 – 1610 MHz
PolarizationRHCP
LNA gain28 ± 2 dB
LNA noise figure≤ 1.5 dB
V.S.W.R< 2.0
Impedance50 Ω
Supply voltage3 – 5 VDC
Current consumption< 15 mA
Connector type and countSMA Male

LTE MIMO ANTENNA
Frequency range698 – 960, 1710 – 2690 MHz
PolarizationLinear
Gain3.0 dBi
V.S.W.R< 3.0
Impedance50 Ω
Connector type and count2x SMA Male

WIFI ANTENNA
Frequency range2400 – 2483.5, 4900 – 5825 MHz
PolarizationLinear
Gain2.0 dBi
V.S.W.R< 2.5
Impedance50 Ω
Connector type and count2x RP-SMA Male
